No.3 Will Not Crank: Notes

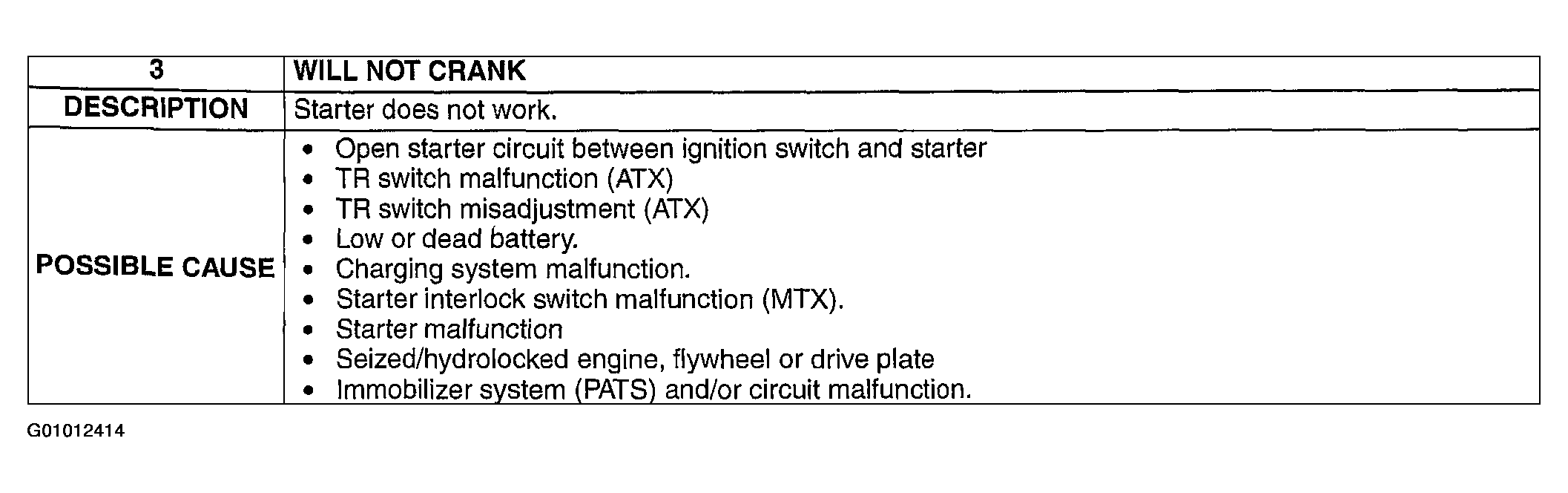

Fig 1: Symptom No.3 Will Not Crank - Description & Possible Causes Chart

G01012414

Courtesy of MAZDA MOTORS CORP.
