No.28 Fuel Filling Shut Off Issues: Notes

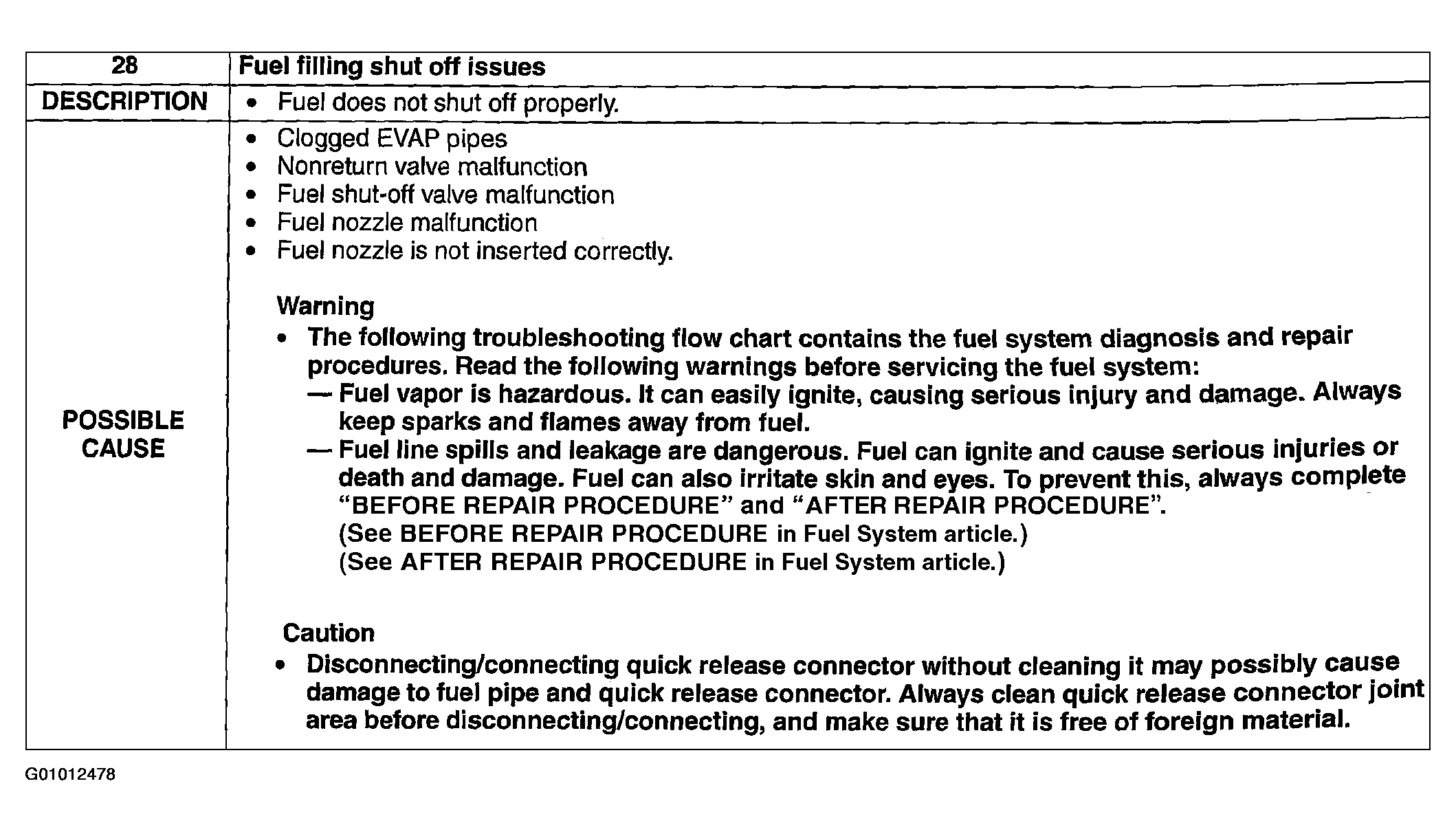

Fig 1: Symptom No.28 Fuel Filling Shut Off Issues - Description & Possible Causes Chart

G01012478

Courtesy of MAZDA MOTORS CORP.
