Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P2108: Throttle Actuator Control Module Performance >> Notes

DTC P2108: Throttle Actuator Control Module Performance: Notes

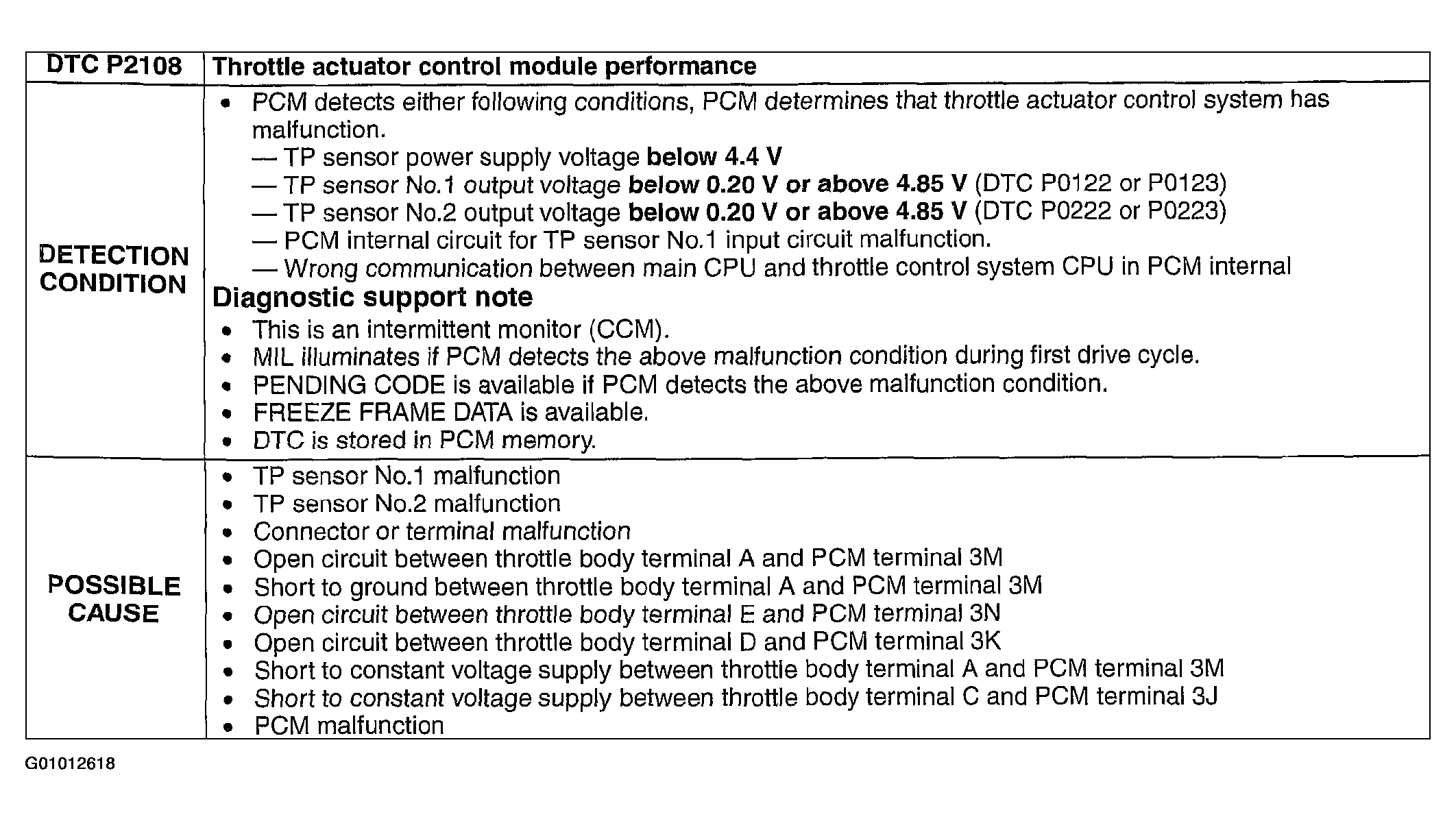

Fig 1: DTC P2108 - Detection Conditions & Possible Causes

G01012618

Courtesy of MAZDA MOTORS CORP.
