Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P2108: Throttle Actuator Control Module Performance >> Diagnostic procedure

Diagnostic procedure

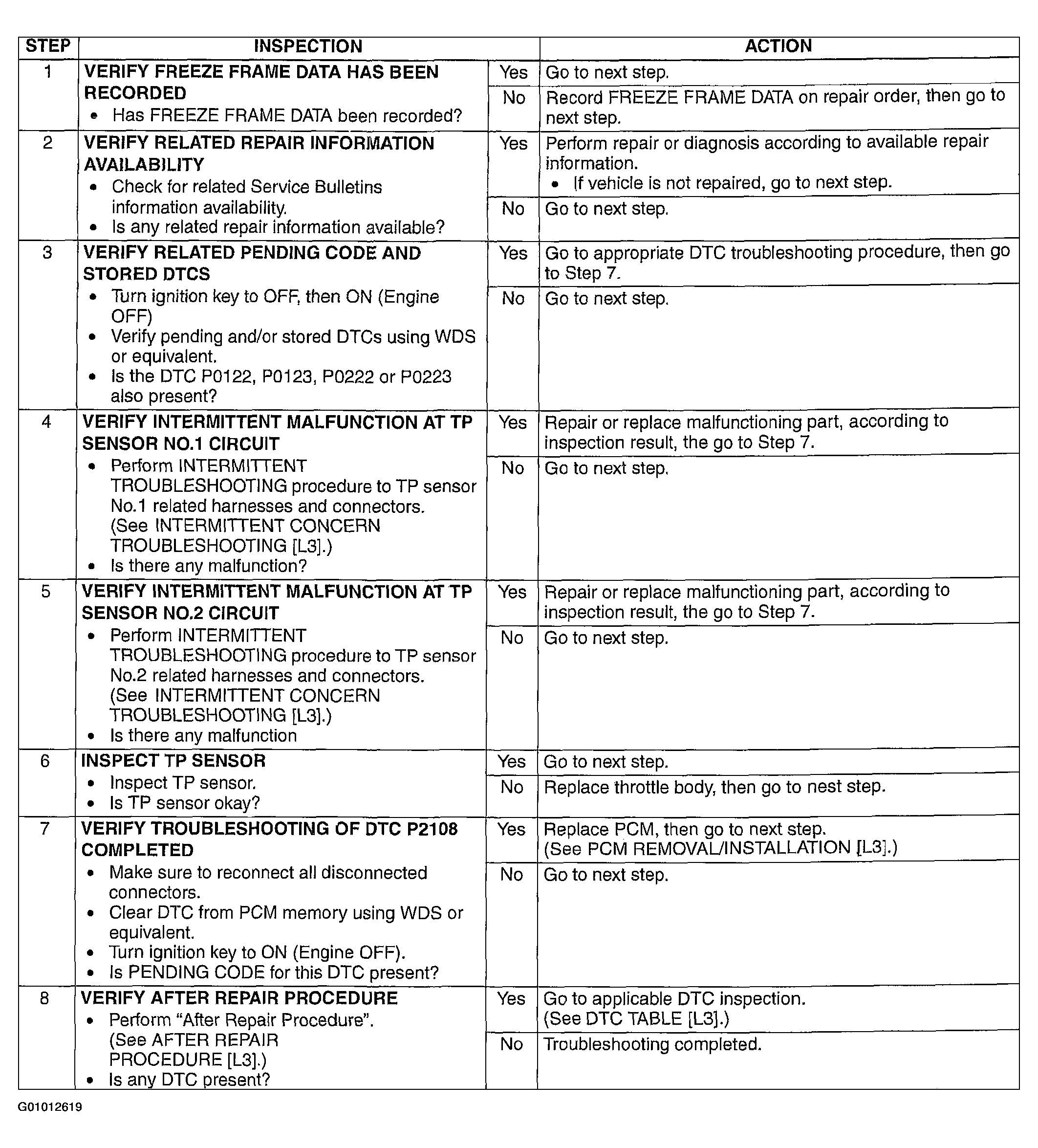

Fig 1: DTC P2108 - Diagnostic Procedure
G01012619Courtesy of MAZDA MOTORS CORP.
