Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P2010: Variable Tumble Control Solenoid Valve Circuit High Input >> Notes

DTC P2010: Variable Tumble Control Solenoid Valve Circuit High Input: Notes

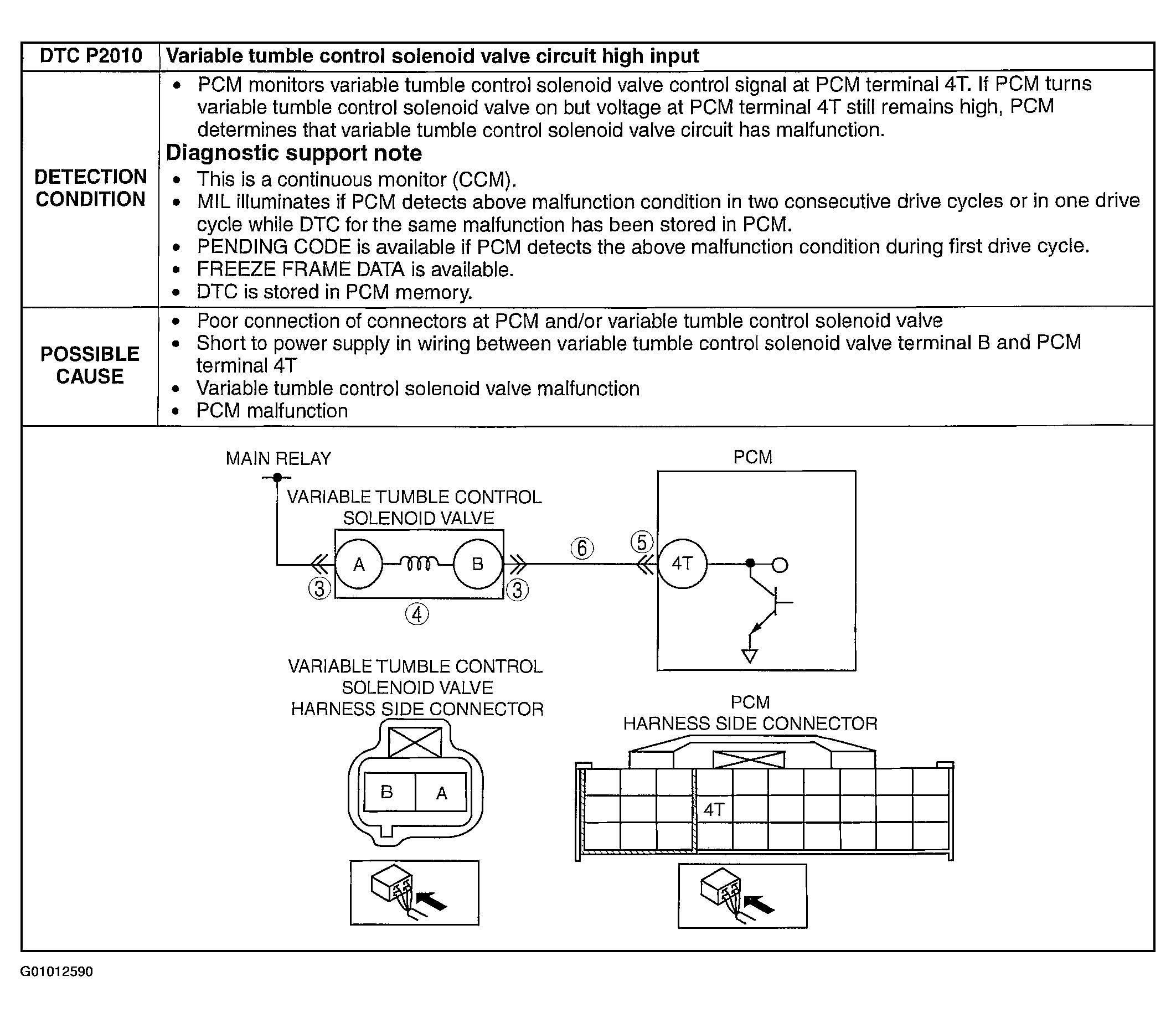

Fig 1: DTC P2010 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
G01012590Courtesy of MAZDA MOTORS CORP.
