DTC P2009: Variable Tumble Control Solenoid Valve Circuit Low Input: Notes

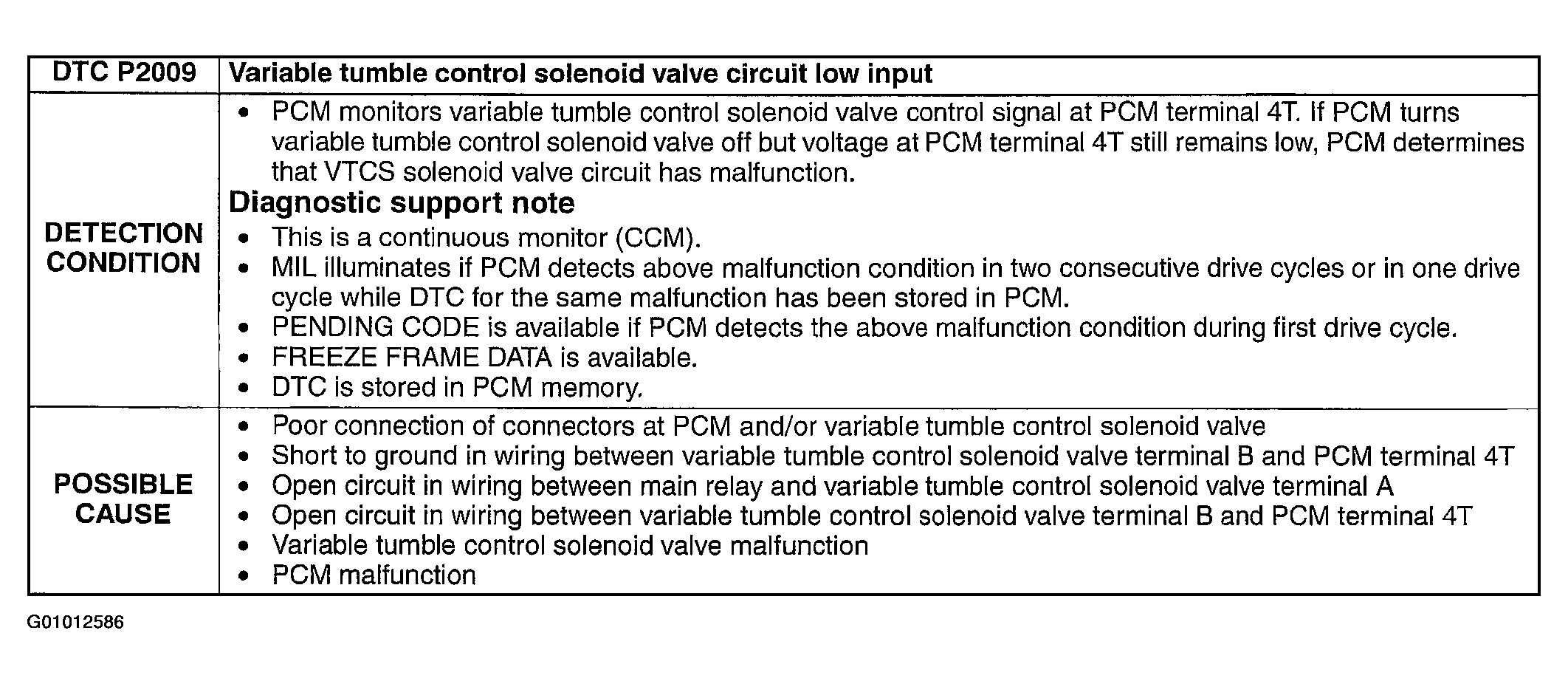

Fig 1: DTC P2009 - Detection Conditions & Possible Causes
G01012586Courtesy of MAZDA MOTORS CORP.

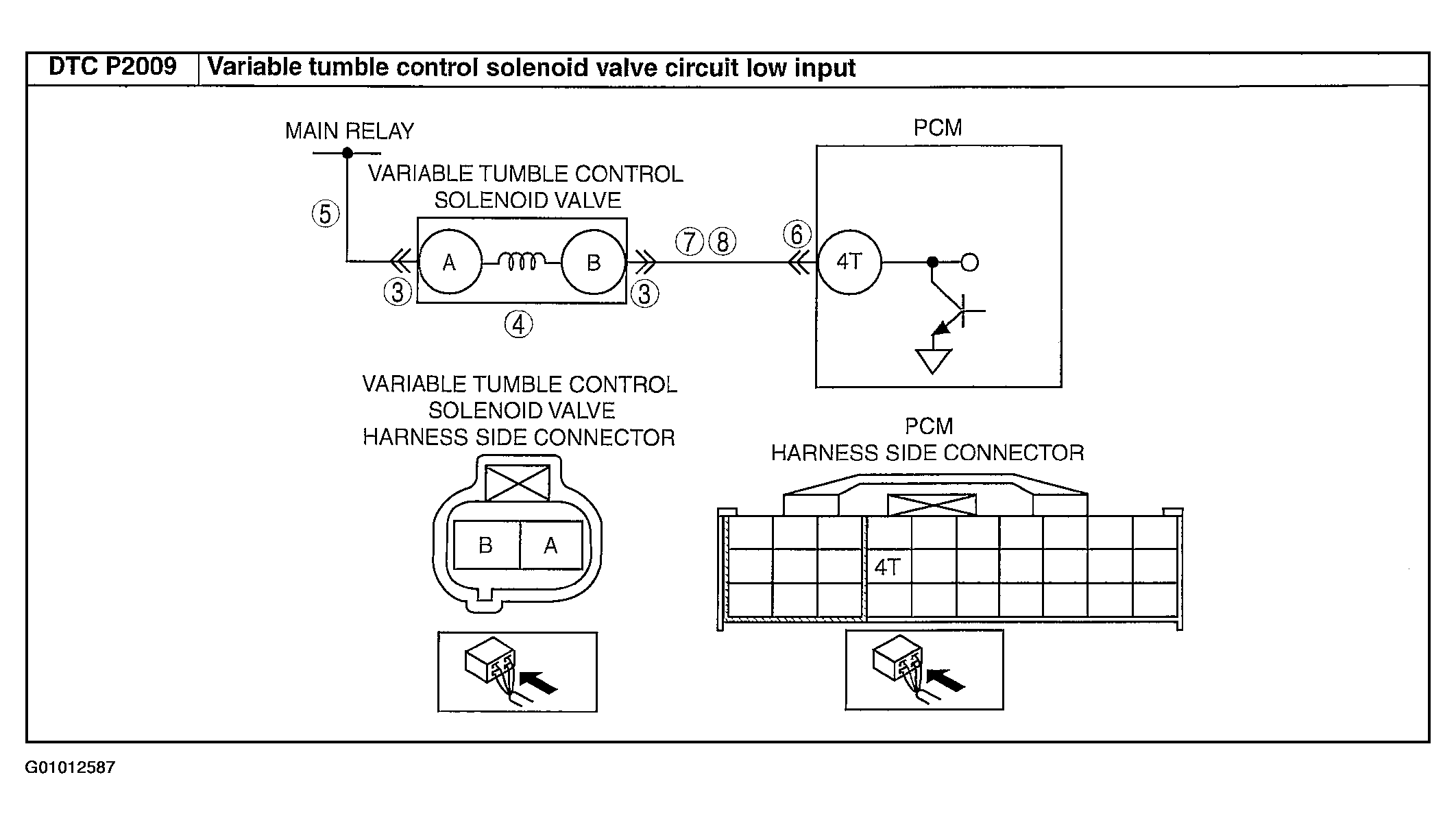

Fig 2: DTC P2009 - Circuit Identification & Connector Views
G01012587Courtesy of MAZDA MOTORS CORP.
