Diagnostic procedure

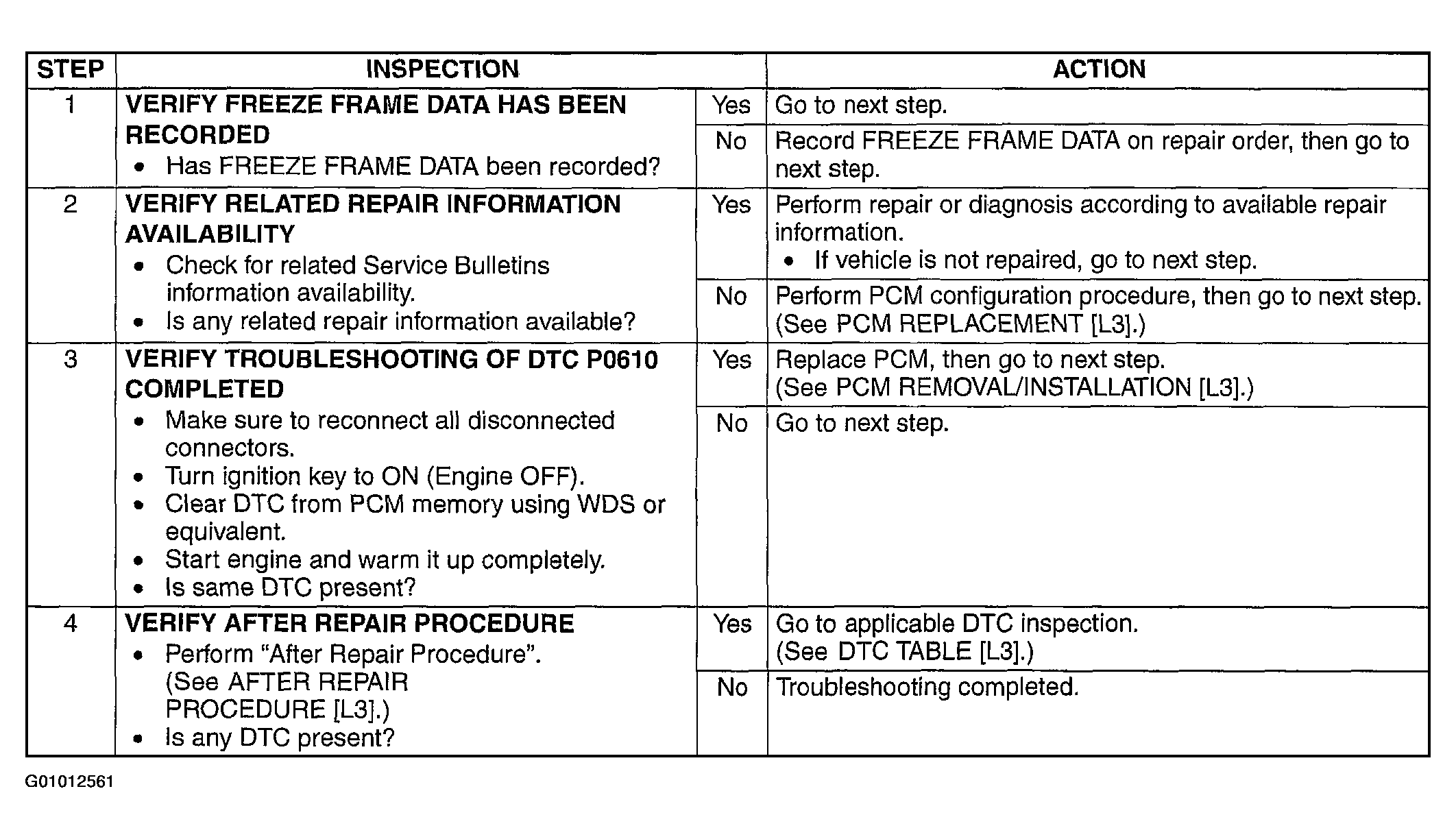

Fig 1: DTC P0610 - Diagnostic Procedure
G01012561Courtesy of MAZDA MOTORS CORP.
