Diagnostic procedure

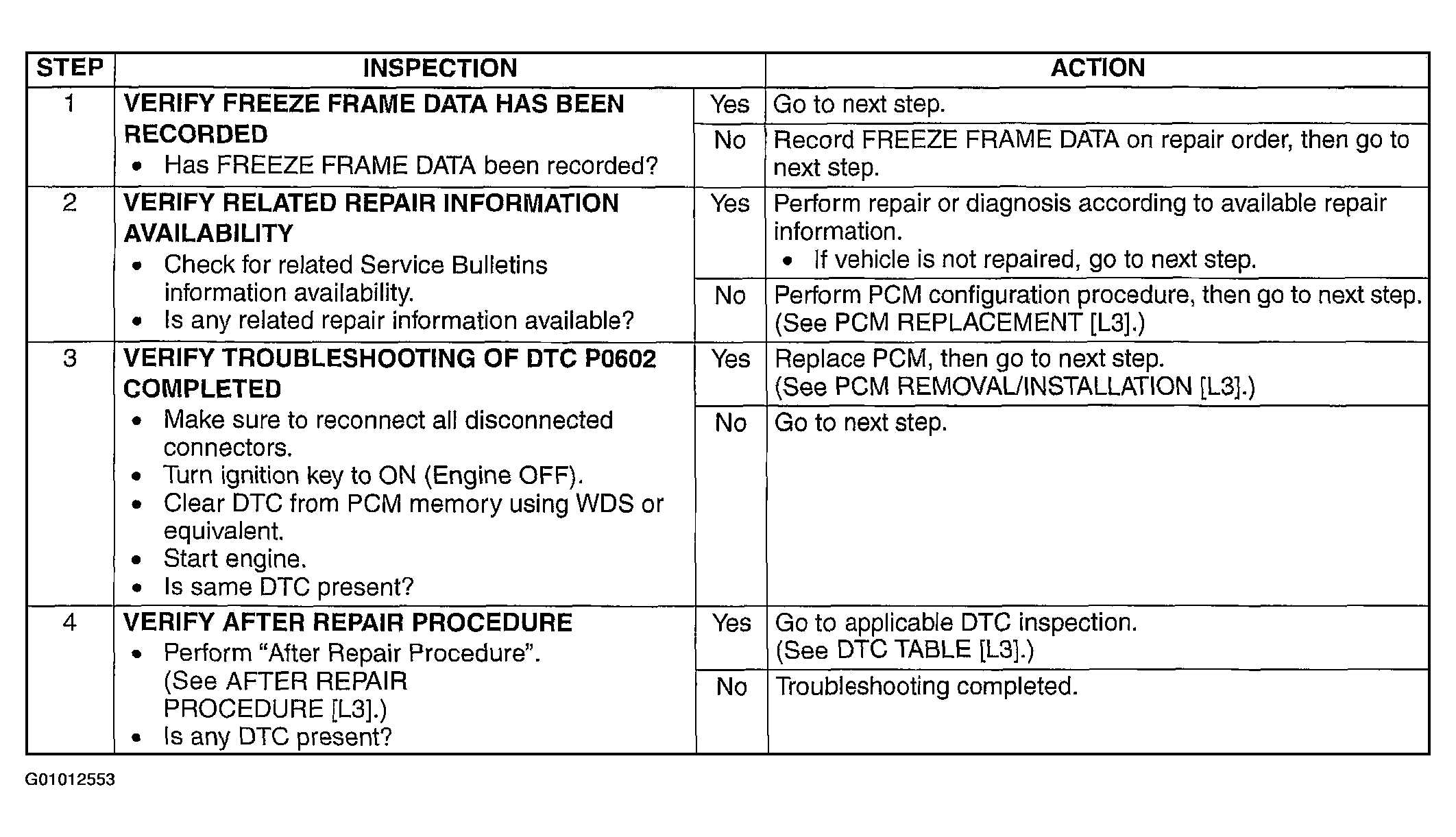

Fig 1: DTC P0602 - Diagnostic Procedure
G01012553Courtesy of MAZDA MOTORS CORP.
