DTC P0571: Brake Switch Circuit Malfunction
>>
Notes
DTC P0571: Brake Switch Circuit Malfunction: Notes

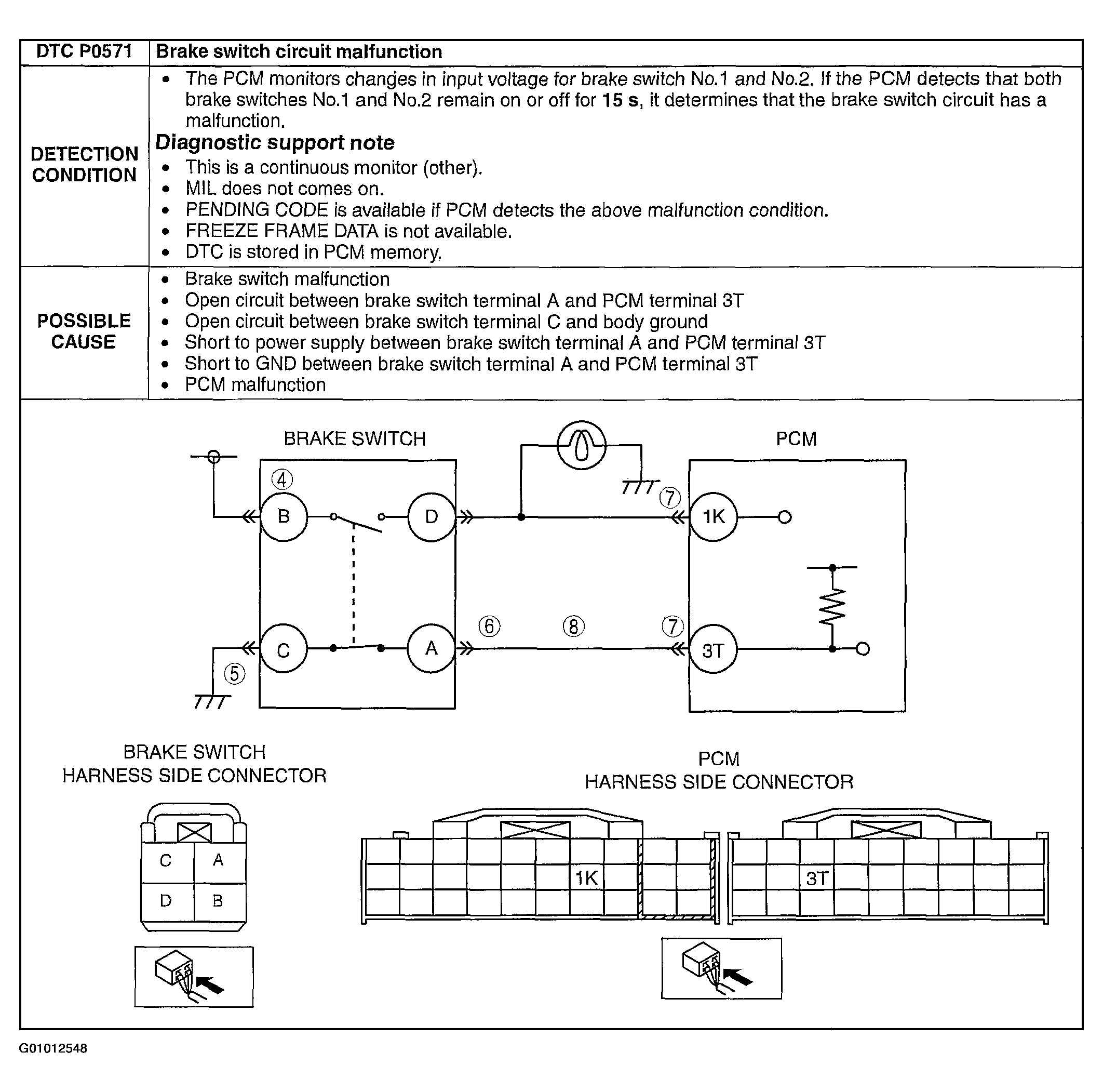

Fig 1: DTC P0571 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
