DTC P0222: TP Sensor No. 2 Circuit Low Input: Notes

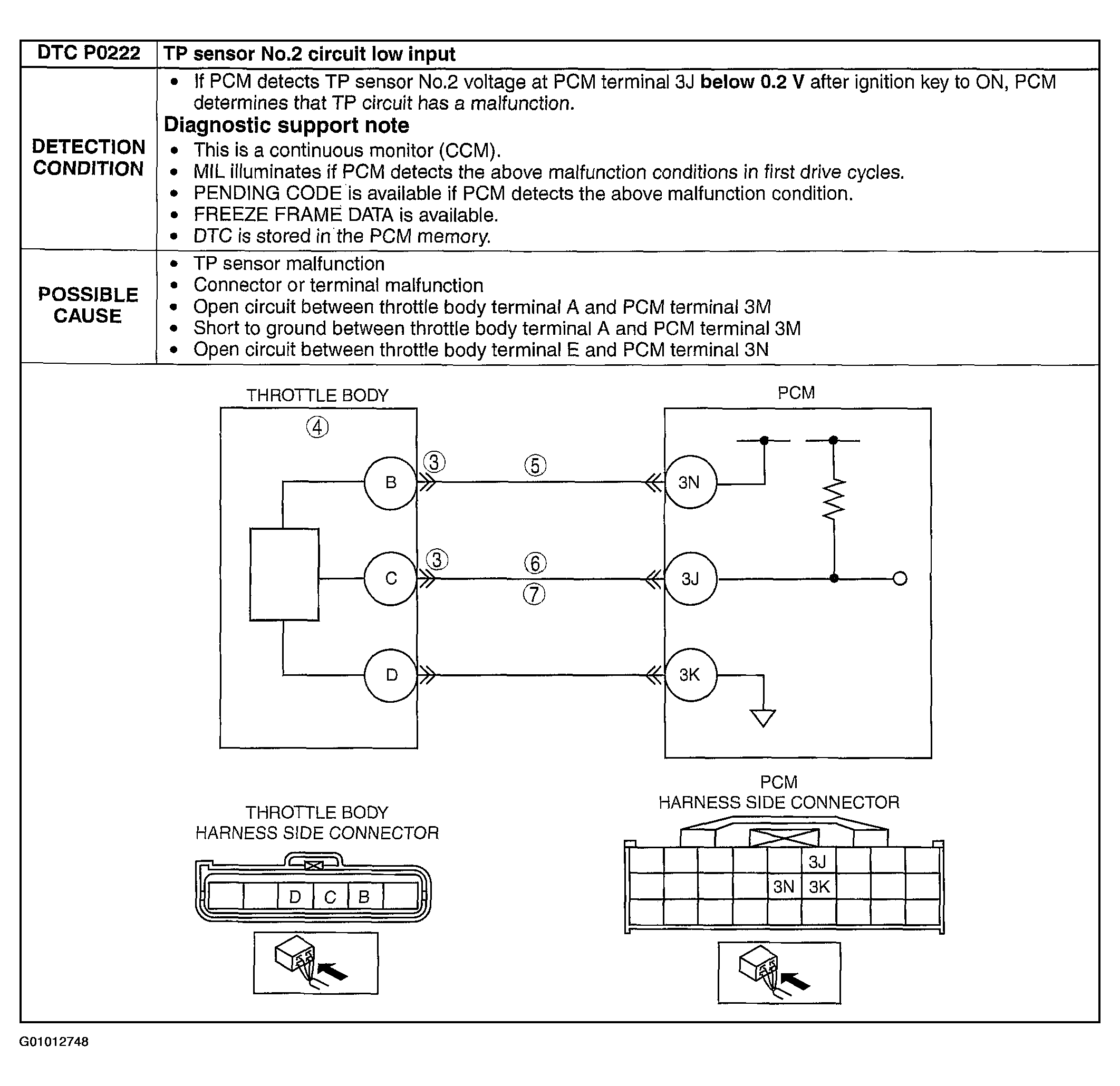

Fig 1: DTC P0222 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

G01012748

Courtesy of MAZDA MOTORS CORP.
