Mazda
>>
2004
>>
6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System L3)
>>
DTC P0134: Front Ho2S Circuit No Activity Detected
>>
Notes
DTC P0134: Front Ho2S Circuit No Activity Detected: Notes

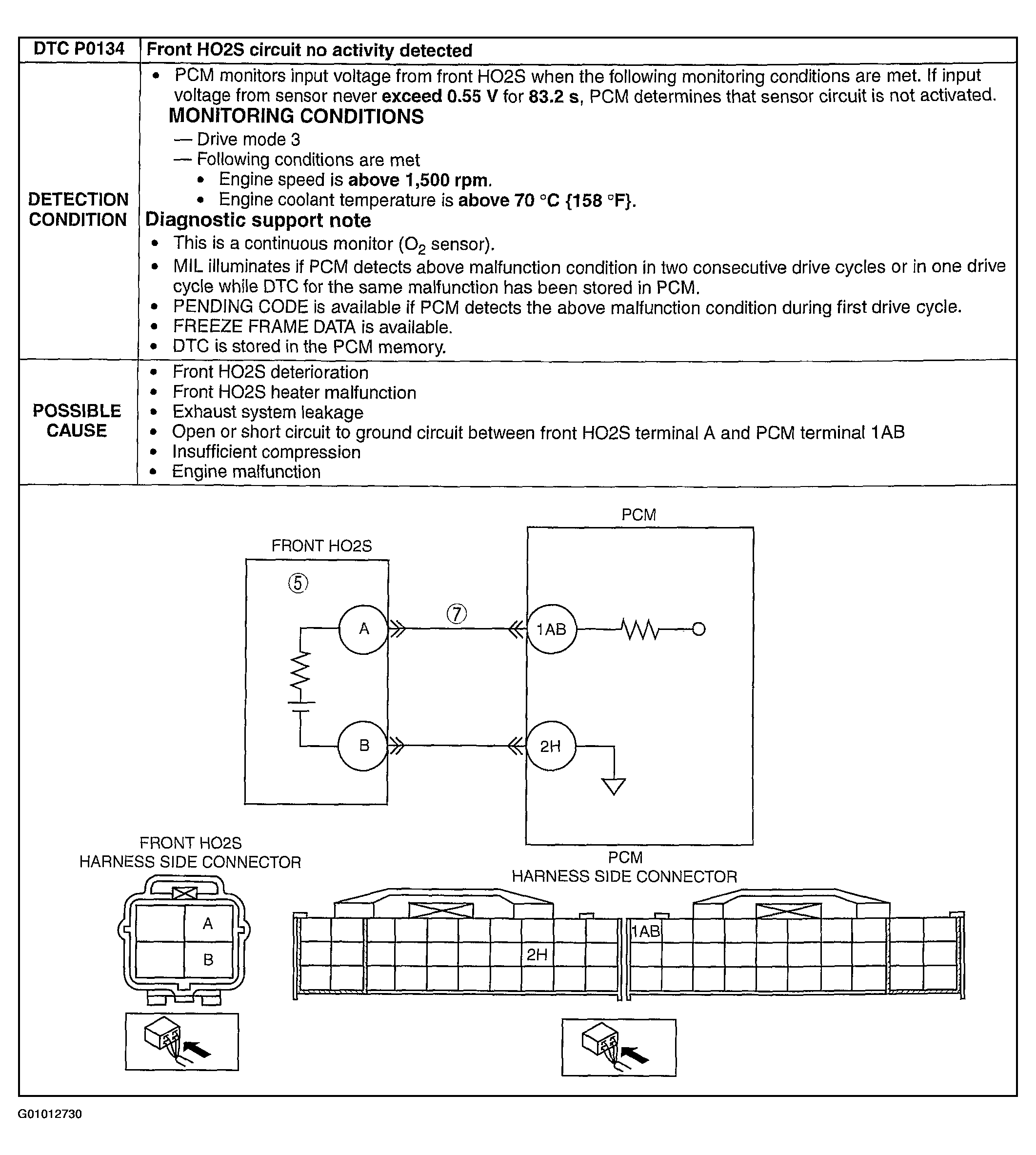

Fig 1: DTC P0134 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
