DTC P0123: TP Sensor No. 1 Circuit High Input: Notes

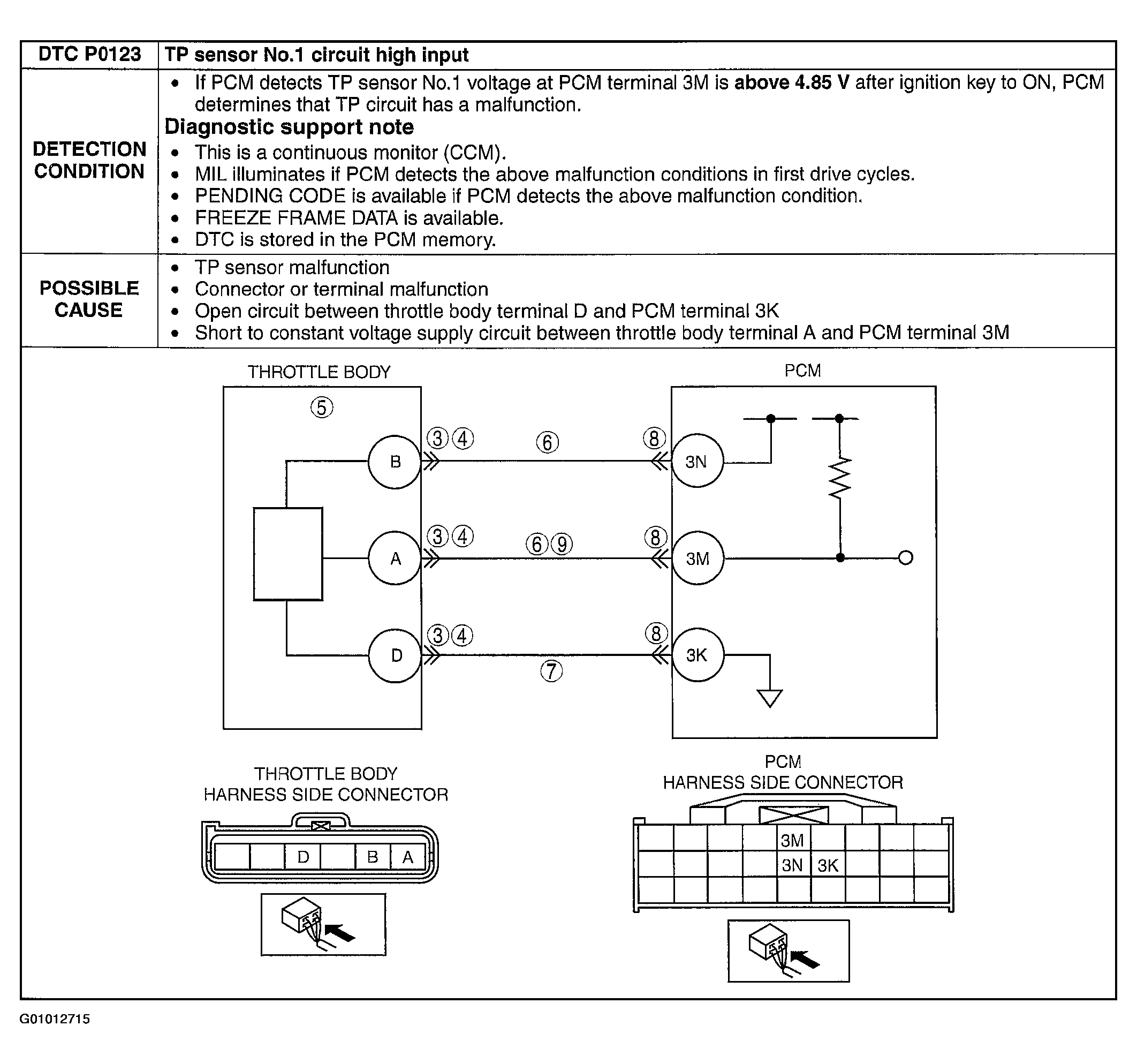

Fig 1: DTC P0123 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

G01012715

Courtesy of MAZDA MOTORS CORP.
