Diagnostic procedure

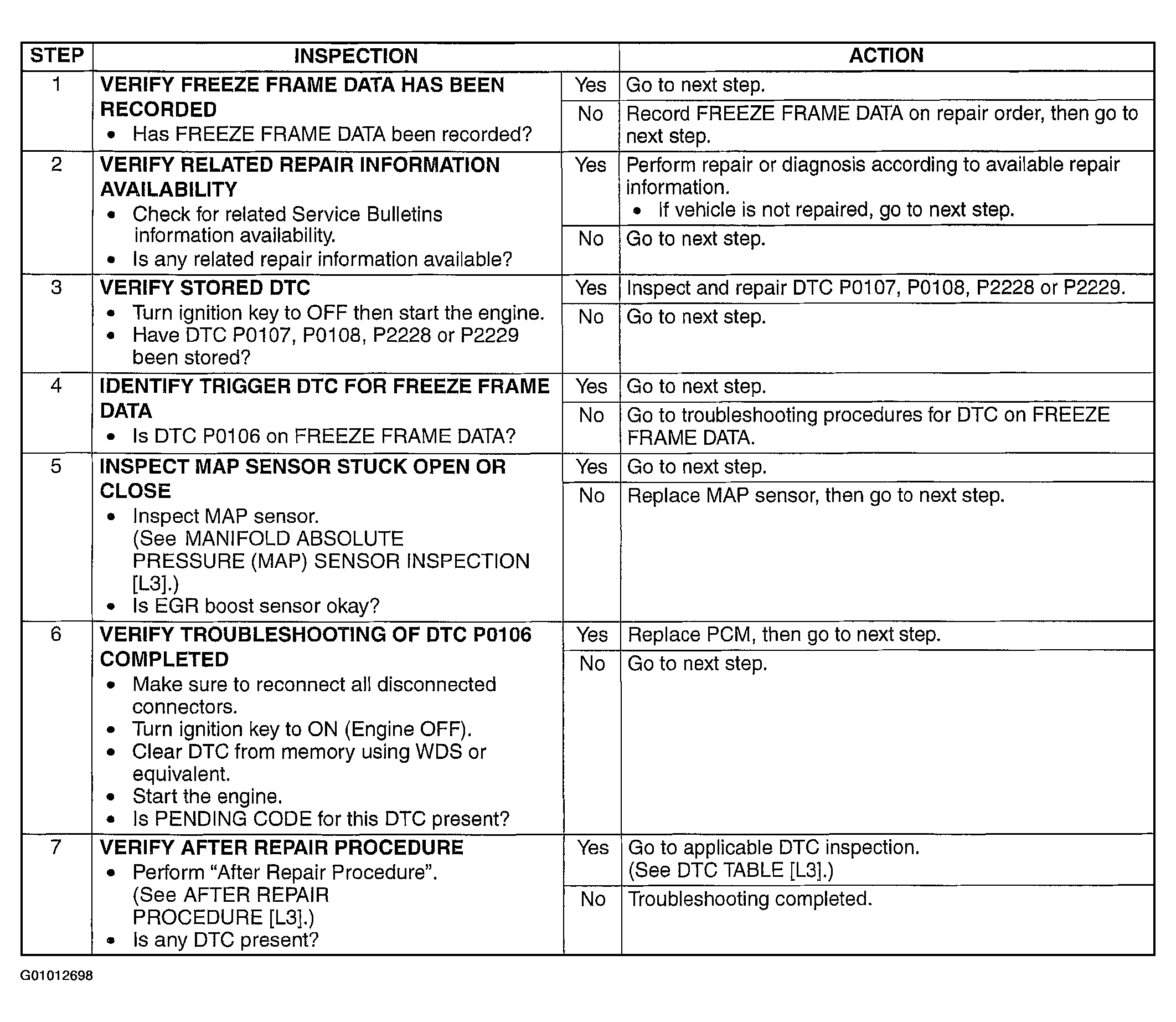

Fig 1: DTC P0106 - Diagnostic Procedure
G01012698Courtesy of MAZDA MOTORS CORP.
