Mazda
>>
2004
>>
6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System L3)
>>
DTC P0101: MAF Sensor Inconsistent With TP Sensor Or Engine Speed
>>
Notes
DTC P0101: MAF Sensor Inconsistent With TP Sensor Or Engine Speed: Notes

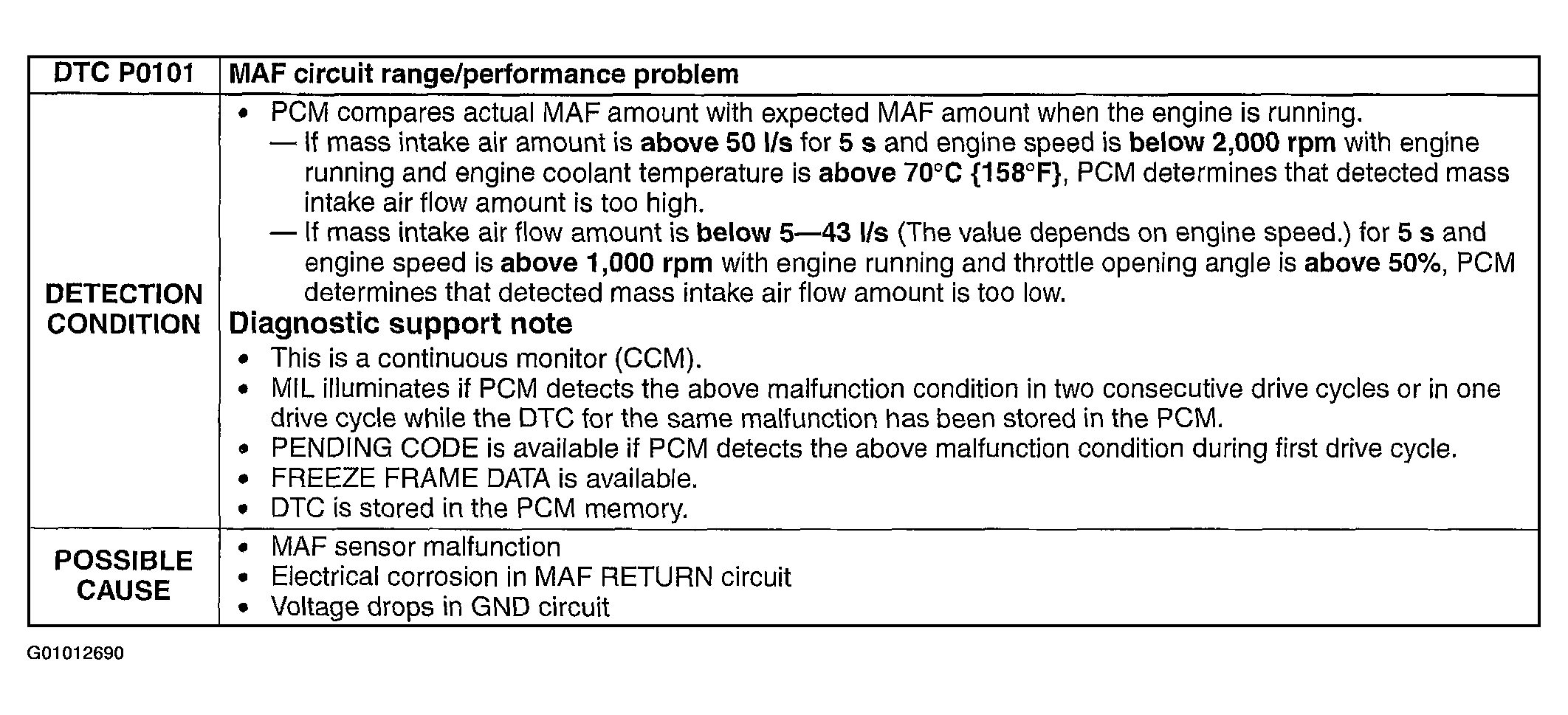

Fig 1: DTC P0101 - Detection Conditions & Possible Causes
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
