DTC P0101: MAF Sensor Inconsistent With TP Sensor Or Engine Speed
>>
Diagnostic procedure
Diagnostic procedure

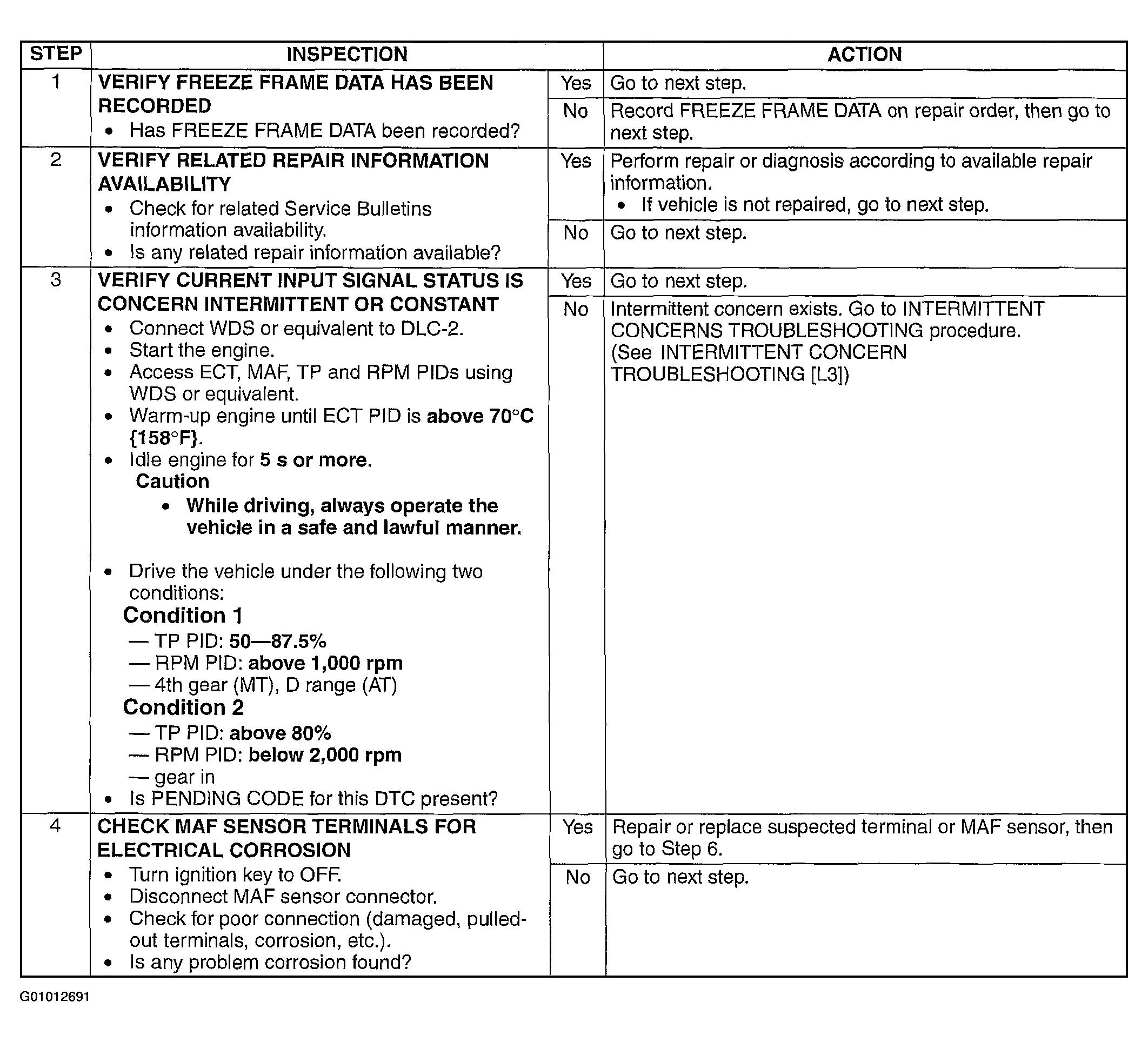

Fig 1: DTC P0101 - Diagnostic Procedure (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

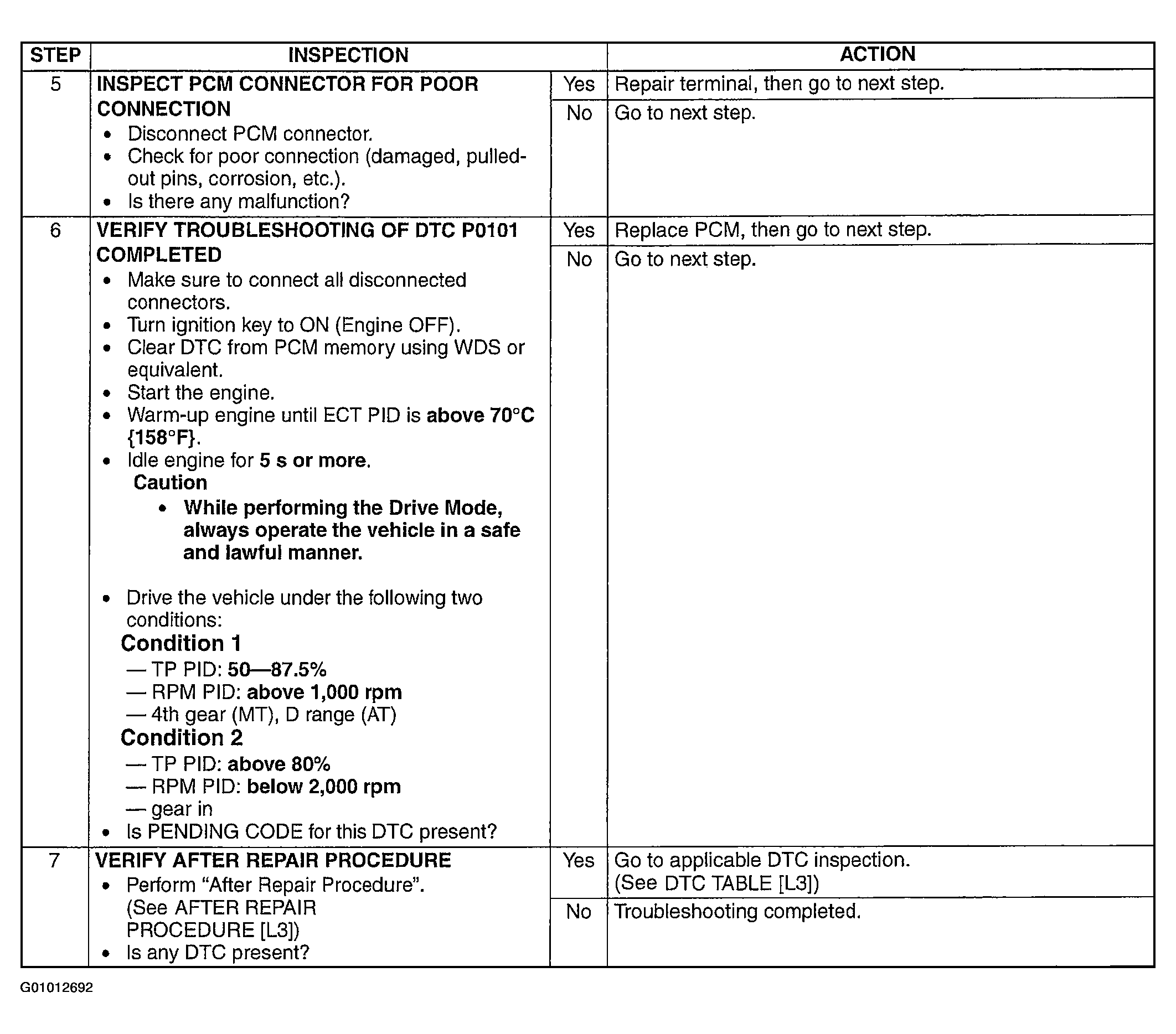

Fig 2: DTC P0101 - Diagnostic Procedure Chart (Steps 5-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
