DTC P0031: Front Ho2S Heater Circuit Low Input: Notes

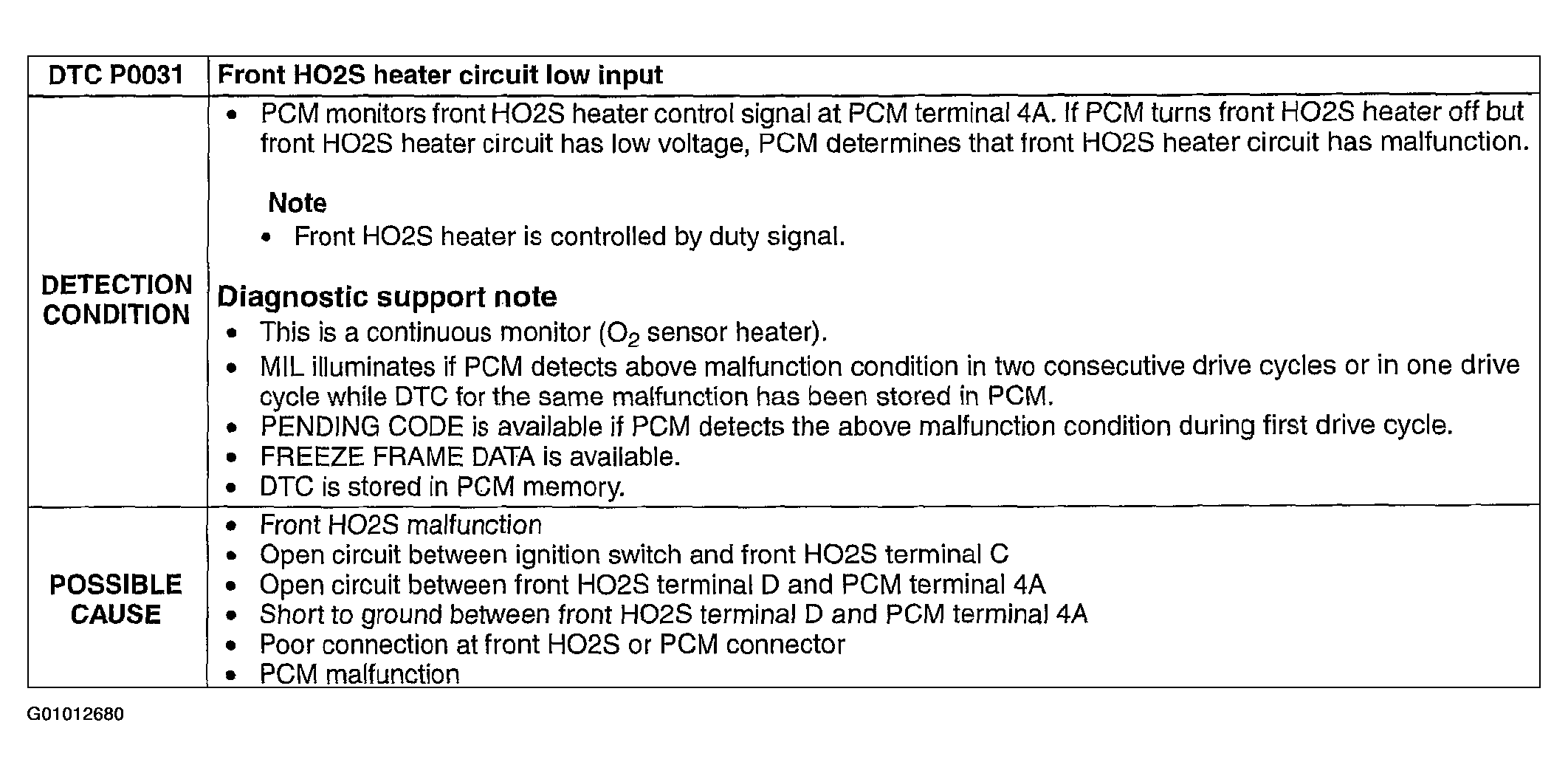

Fig 1: DTC P0031 - Detection Conditions & Possible Causes
G01012680Courtesy of MAZDA MOTORS CORP.

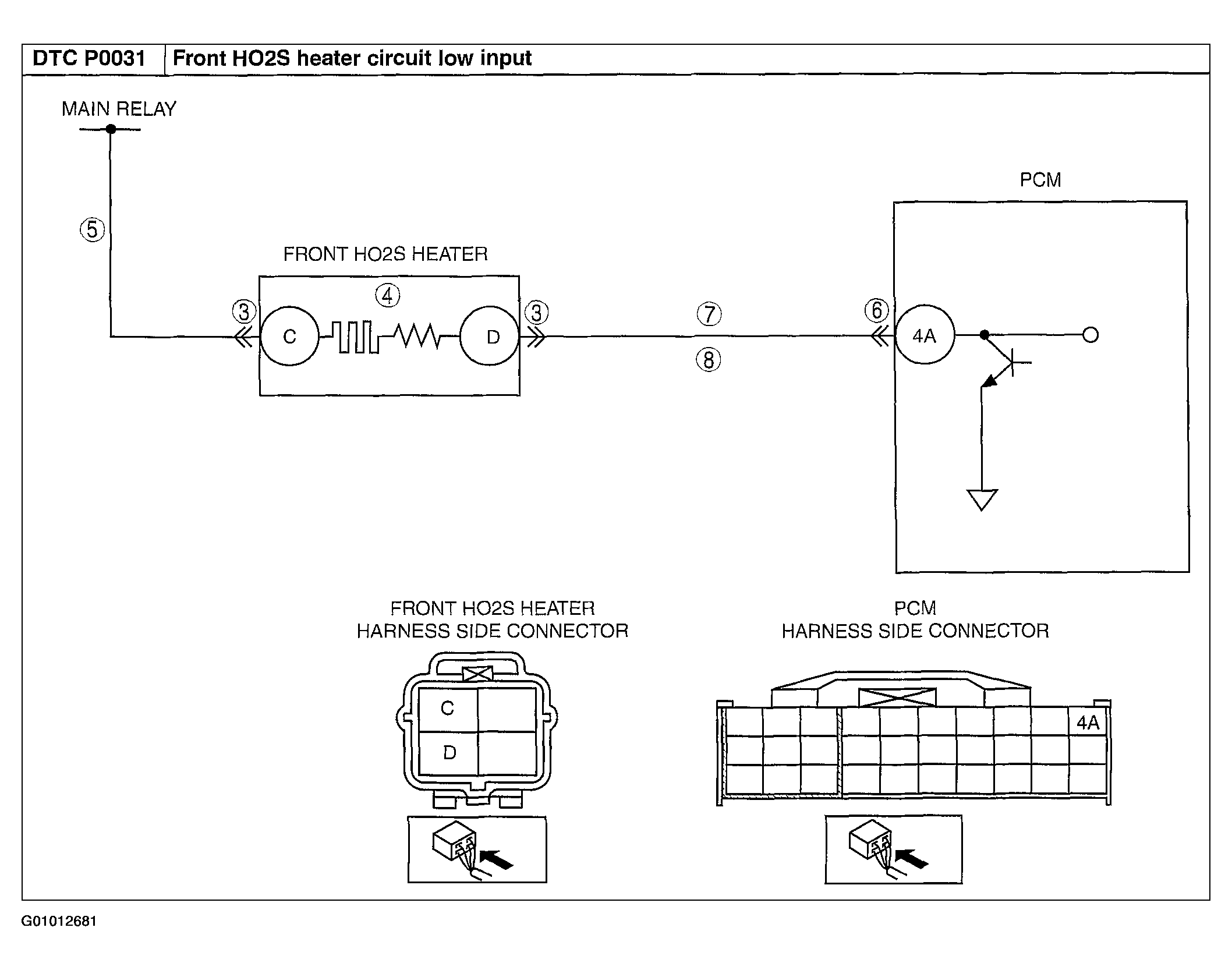

Fig 2: DTC P0031 - Circuit Identification & Connector Views
G01012681Courtesy of MAZDA MOTORS CORP.
