DTC P0012: CMP Timing Over Retarded: Notes

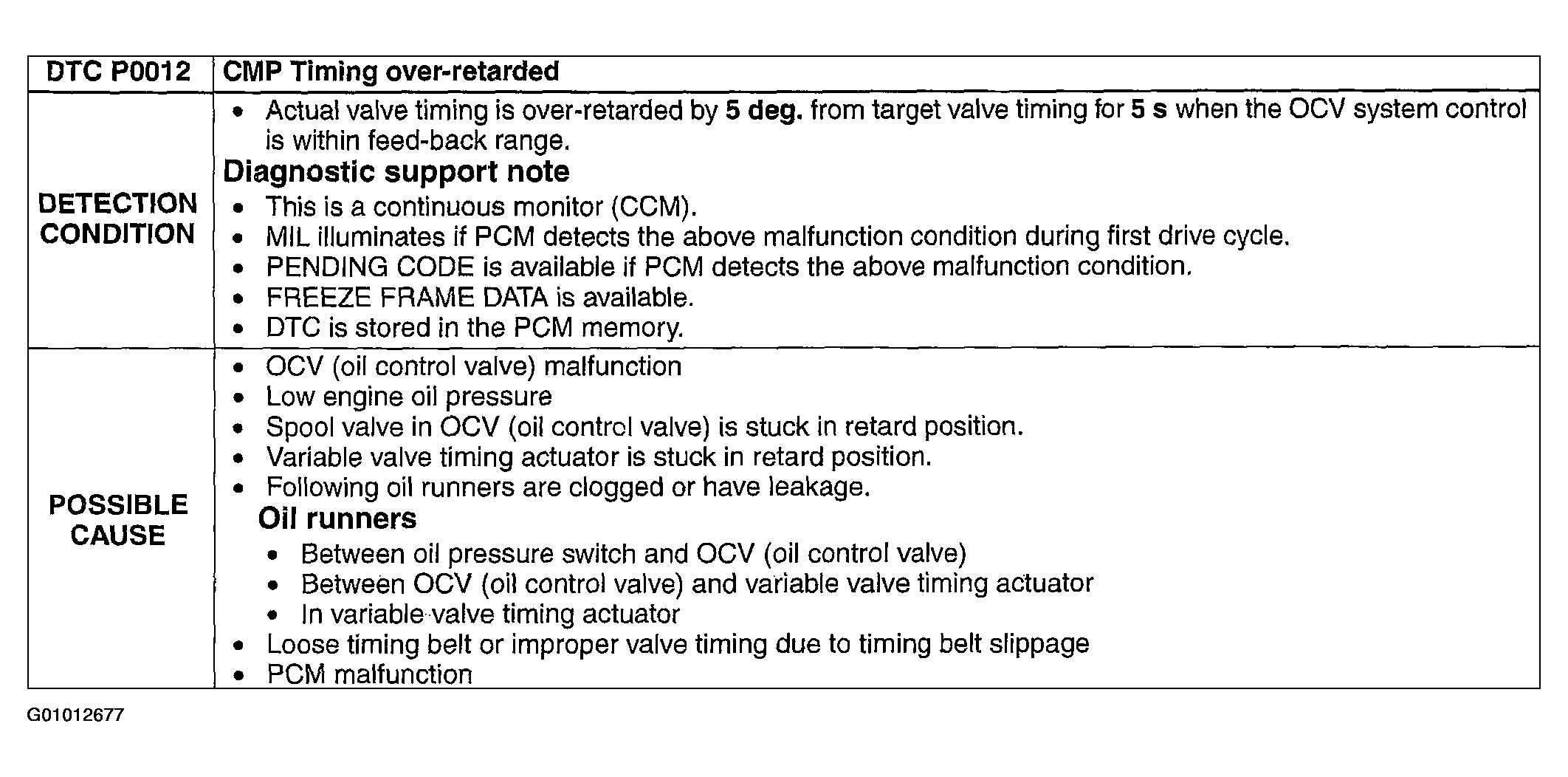

Fig 1: DTC P0012 - Detection Conditions & Possible Causes

G01012677

Courtesy of MAZDA MOTORS CORP.
