Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P0011: CMP Timing Over-Advanced >> Notes

DTC P0011: CMP Timing Over-Advanced: Notes

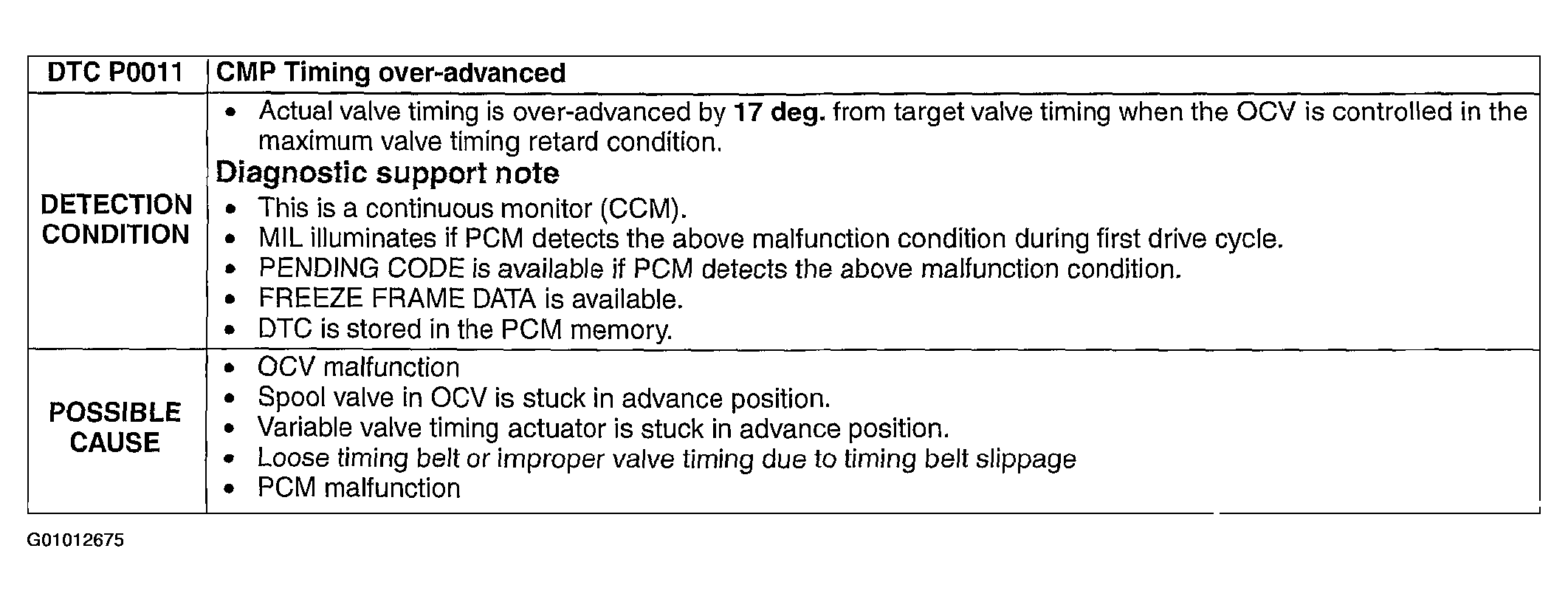

Fig 1: DTC P0011 - Detection Conditions & Possible Causes

G01012675

Courtesy of MAZDA MOTORS CORP.
