6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (L3)
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
HO2S (Front) Heater Control Signal
>>
Vehicle condition
Vehicle condition
Idle after warm up (engine speed approx. 700 RPM, no load, P/S off, A/C off)

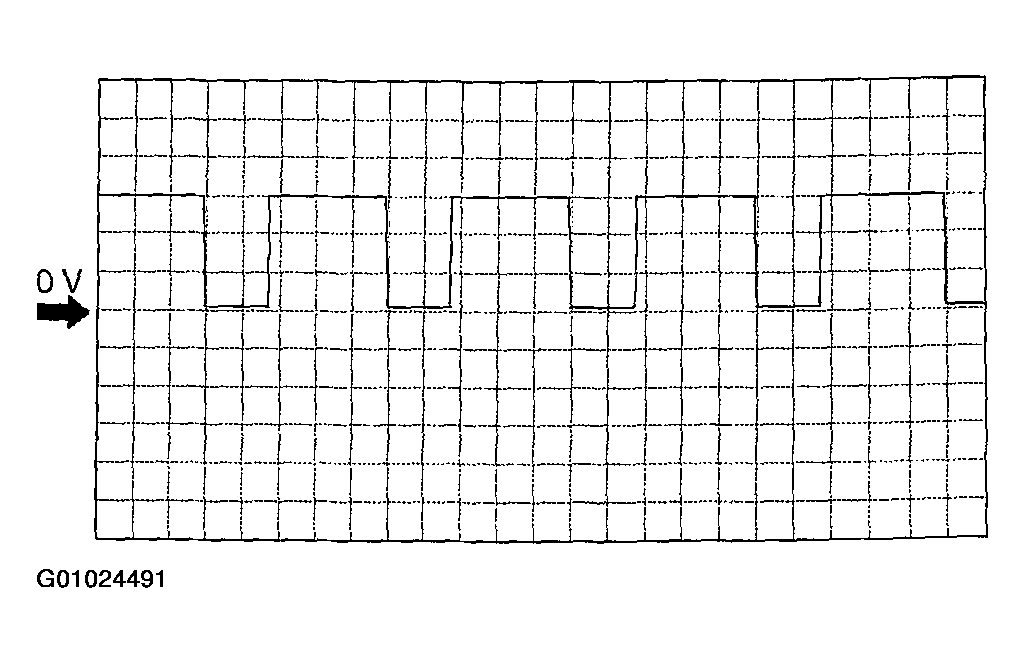

Fig 1: Inspecting HO2S (Front) Heater Control Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
