Inspection Using An Oscilloscope (Reference)
>>
CKP Sensor Signal (+)
>>
Vehicle Condition
Vehicle Condition
Idle after warm up (engine speed approx. 700 RPM, no load, P/S off, A/C off)

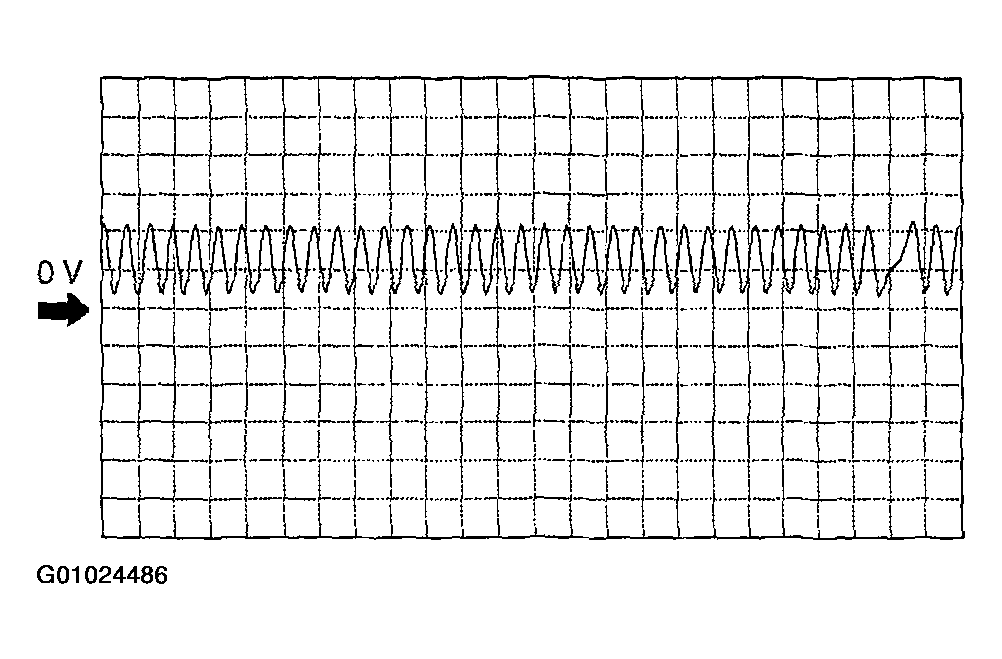

Fig 1: Inspecting CKP Sensor Signal (+) Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
