Circuit Open/Short Inspection: Specification

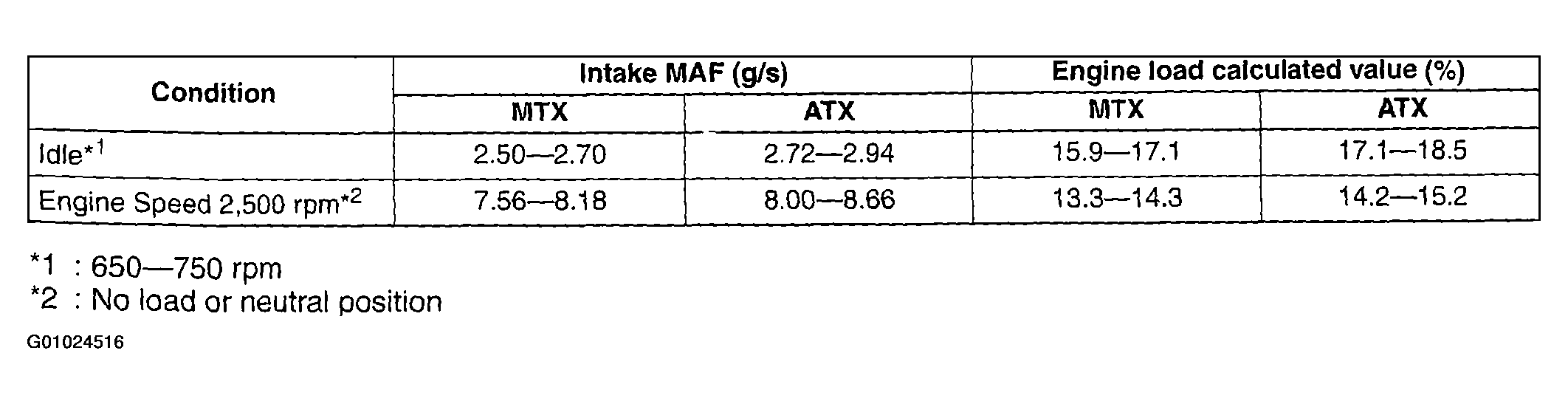

Fig 1: MAF/IAT Sensor Specification

G01024516

Courtesy of MAZDA MOTORS CORP.
