Circuit Open/Short Inspection (Heater): Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Inspect the following wiring harnesses for open or short circuit. (Continuity check)

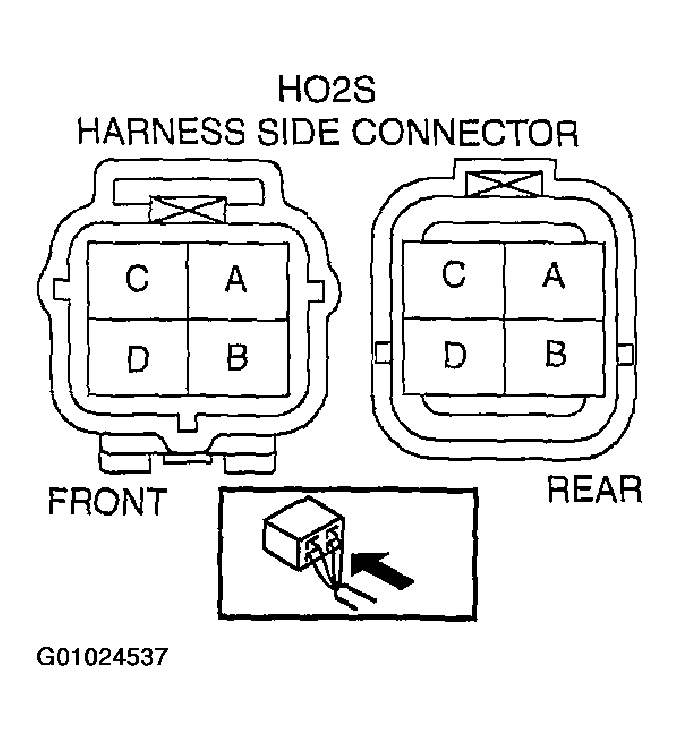

Fig 1: Identifying H2OS Harness Connector Side
G01024537Courtesy of MAZDA MOTORS CORP.
