EGR Valve Removal/Installation [L3]: Notes

1. Disconnect the negative battery cable.
2. Disconnect the EGR valve connector.
3. Remove in the order indicated in the table.

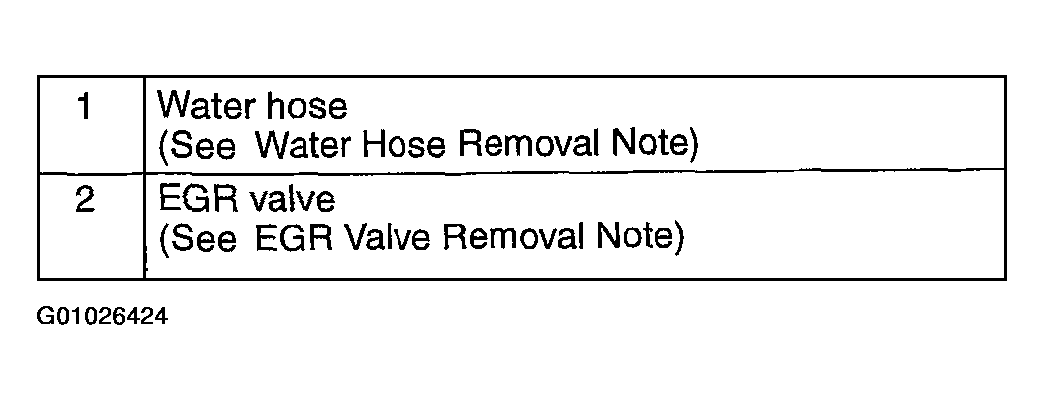

   Fig 1: Removal Order Of EGR Valve [L3]

   Courtesy of MAZDA MOTORS CORP.
4. Install in the reverse order of removal.

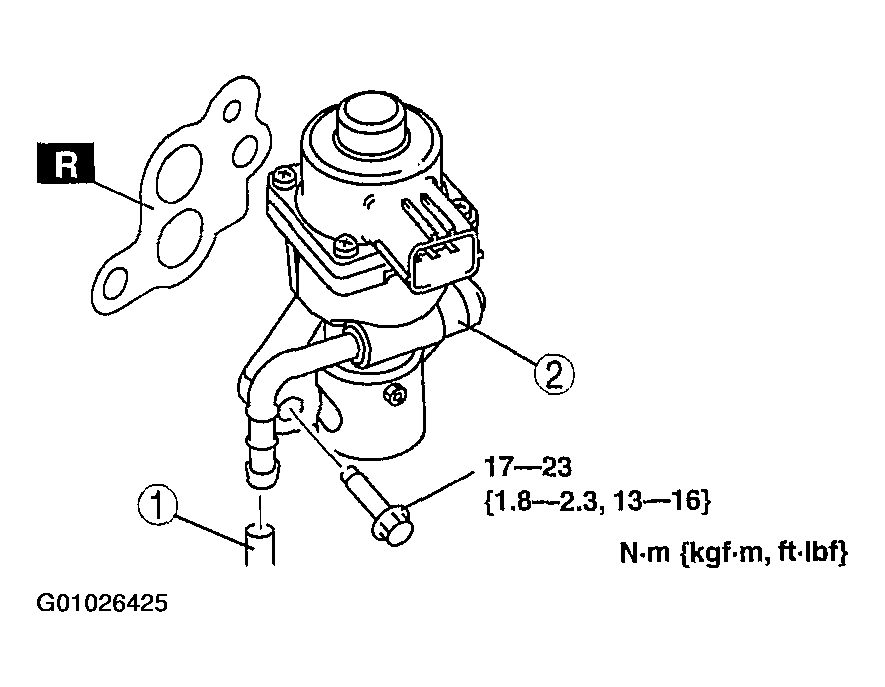

Fig 2: Removing/Installing EGR Valve [L3]

Courtesy of MAZDA MOTORS CORP.
