Ignition Coil Removal/Installation: L3

  1. Disconnect the negative battery cable.
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L3] .)
  3. Remove in the order indicated in the illustration.
    Fig 1: Removing Plug Hole Plate Sequence
    G01027588Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

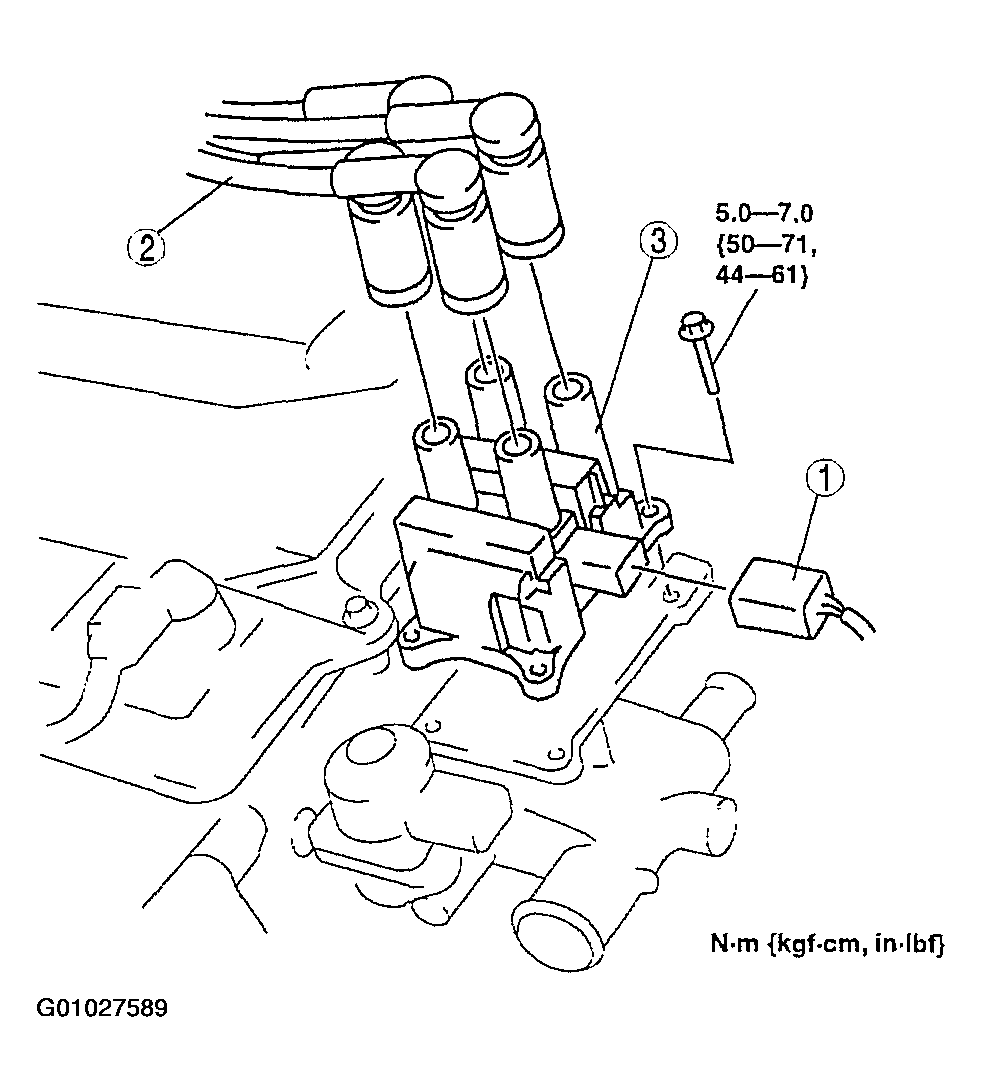

    Fig 2: Identifying Connector, High Tension Lead & Ignition Coil
    G01027589Courtesy of MAZDA MOTORS CORP.
