Fuel Injector Removal/Installation [L3]: Notes

CAUTION:

Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.

Complete the "BEFORE REPAIR PROCEDURE". (See BEFORE REPAIR PROCEDURE .)
Disconnect the negative battery cable.
Remove in the order indicated in the illustration.

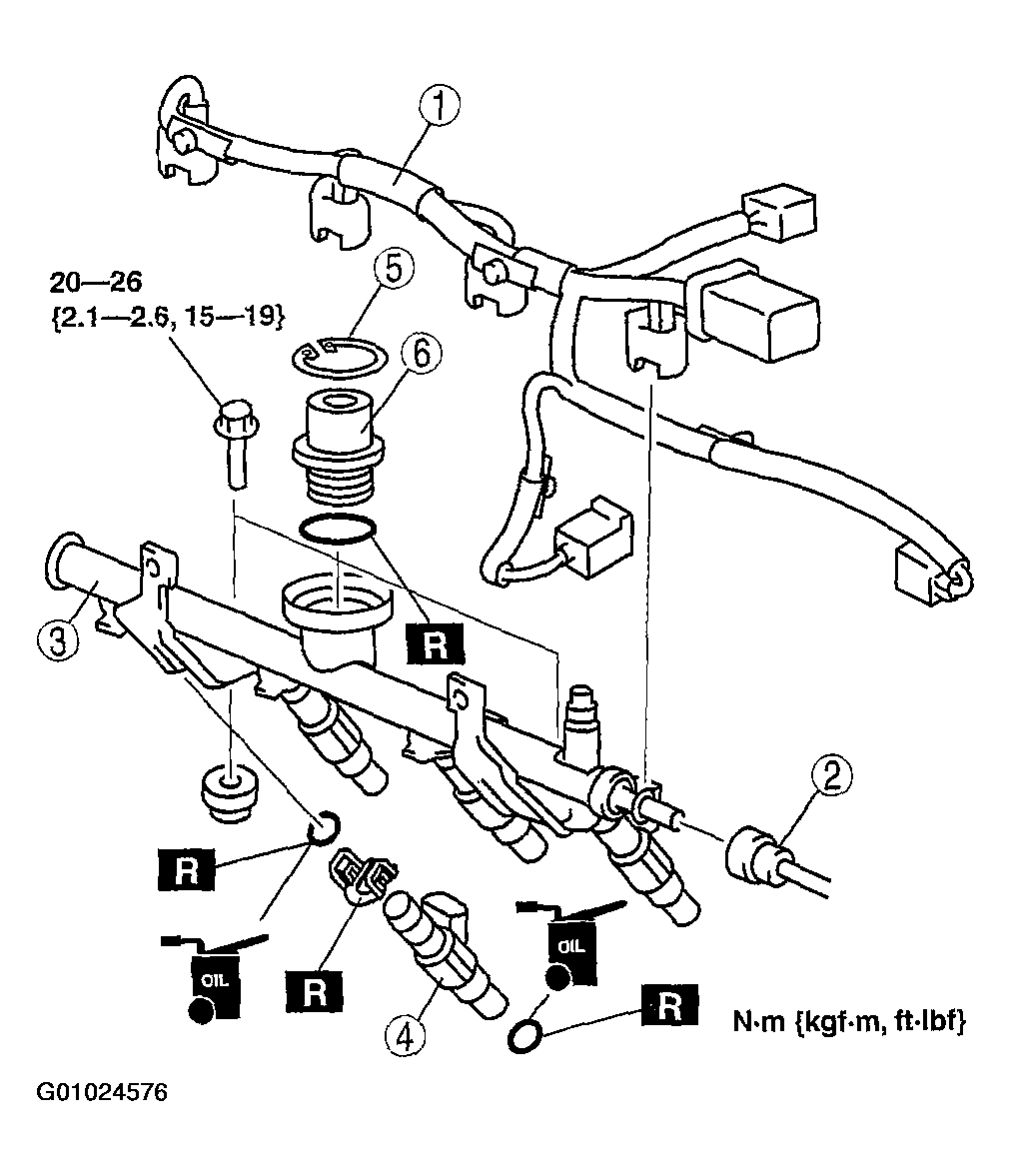

Fig 1: Removal Order Of Fuel Injector
Courtesy of MAZDA MOTORS CORP.

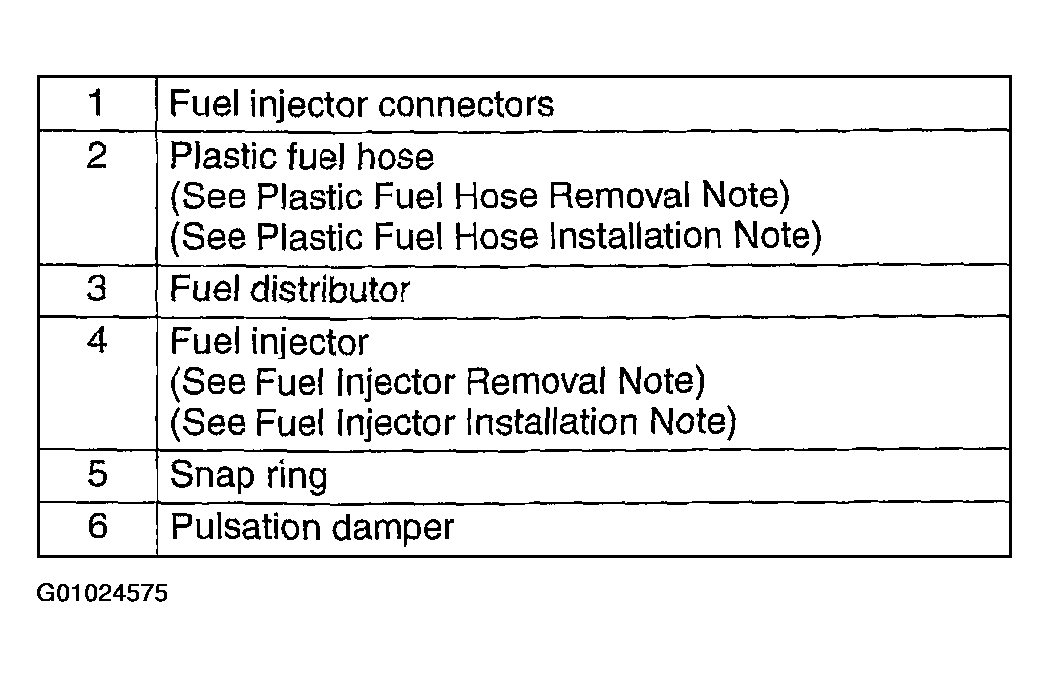

Fig 2: Removing/Installing Fuel Injector [L3]
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Complete the "AFTER REPAIR PROCEDURE". (See AFTER REPAIR PROCEDURE .)
