Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REPLACEMENT [AJ] .)
  2. Inspect the following wiring harnesses for open or short circuit (continuity check).

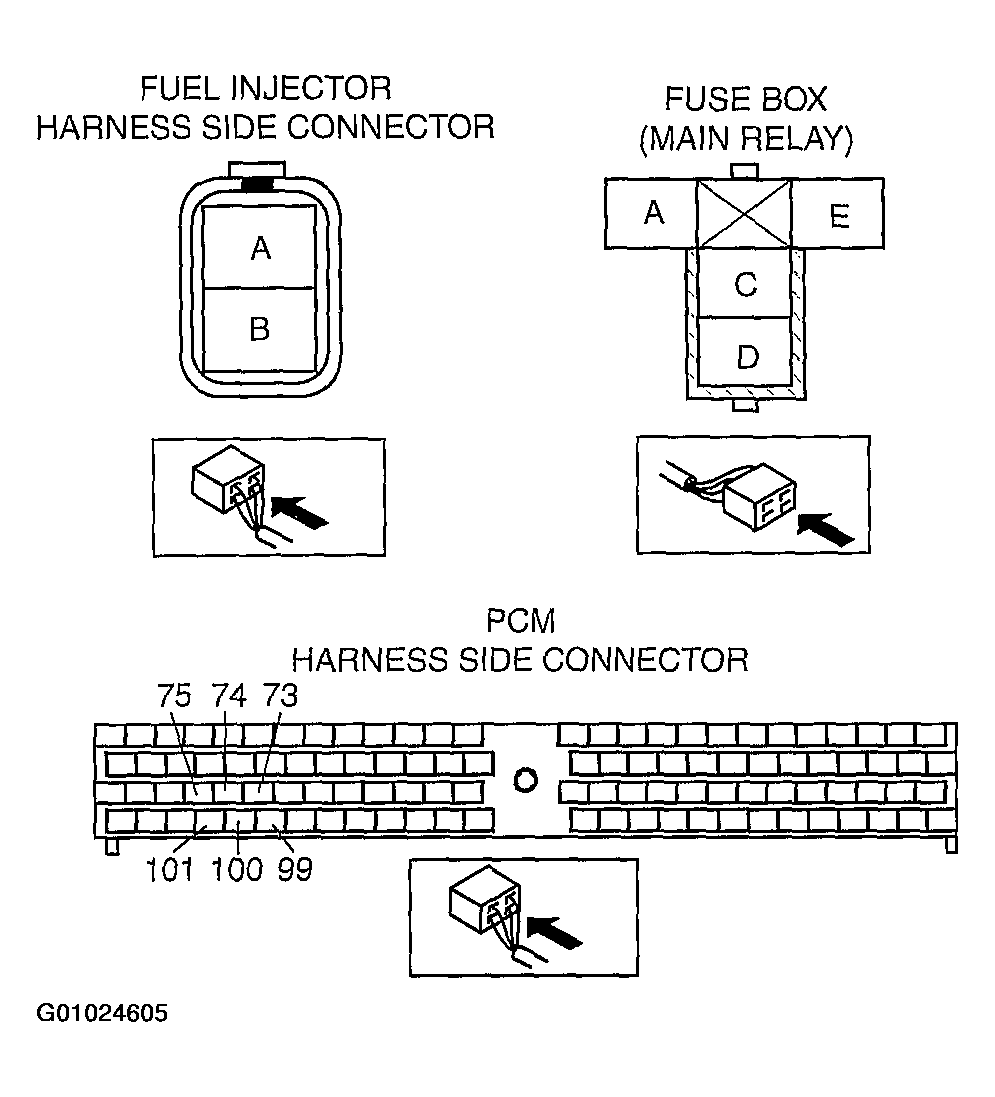

Fig 1: Identifying Fuel Injector, Main Relay & PCM Connector Terminals
G01024605Courtesy of MAZDA MOTORS CORP.
