PID/Data Monitor And Record Procedure: Notes

1. Connect the SST  (WDS or equivalent) to the vehicle DLC-2 16-pin connector.
2. Access and monitor PIDs using the SST  (WDS or equivalent).

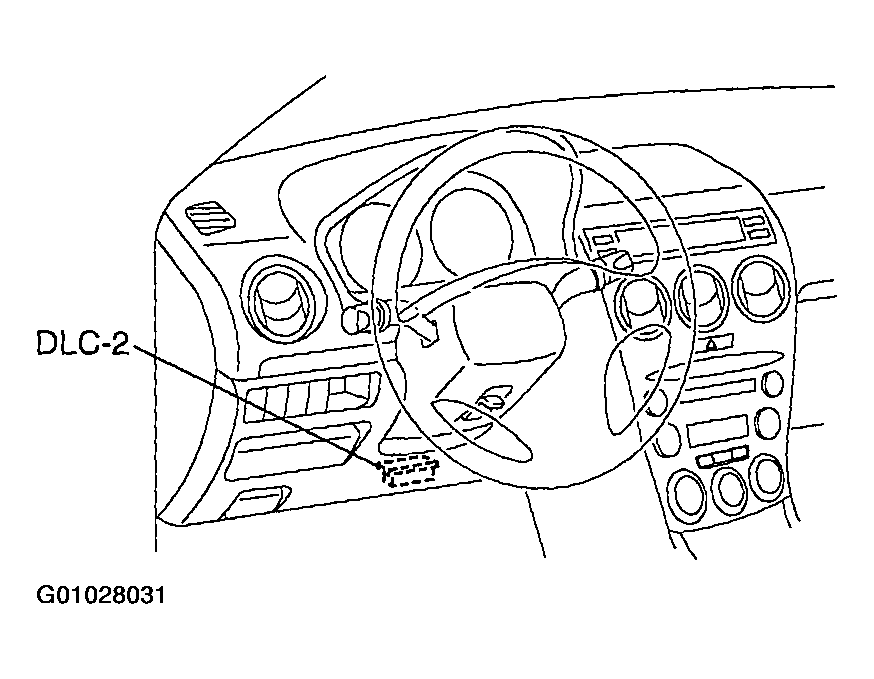

Fig 1: Locating Data Link Connector

Courtesy of MAZDA MOTORS CORP.
