Instrument Cluster Removal/Installation: Notes

CAUTION:

• When replacing the instrument cluster, the configuration procedure must be performed before removing the instrument cluster. If the configuration procedure is not performed before removing the instrument cluster, it is possible that the instrument cluster will not operate normally.

1. Configure the instrument cluster (only when replacing it). (See INSTRUMENT CLUSTER CONFIGURATION .)
2. Disconnect the negative battery cable.
3. Pull down the adjusting lever of the tilt steering wheel and push the steering wheel down.
4. Pull the steering wheel toward you.
5. Remove the meter hood.
6. Remove in the order indicated in the illustration.

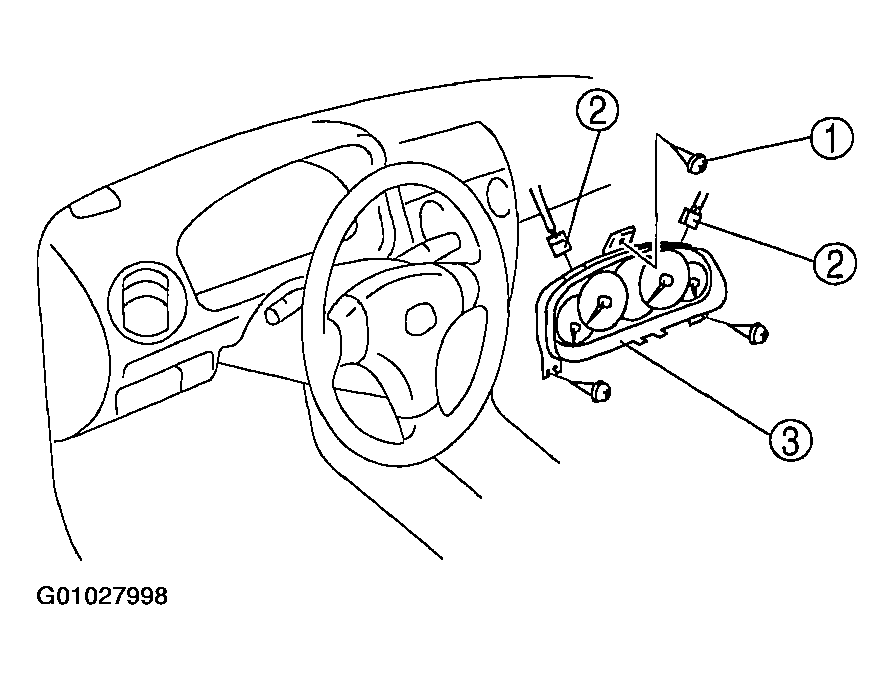

   Fig 1: Removal Order Of Instrument Cluster

   Courtesy of MAZDA MOTORS CORP.
7. Install in the reverse order of removal.

Fig 2: Removing/Installing Instrument Cluster

Courtesy of MAZDA MOTORS CORP.
