Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the mud guard.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

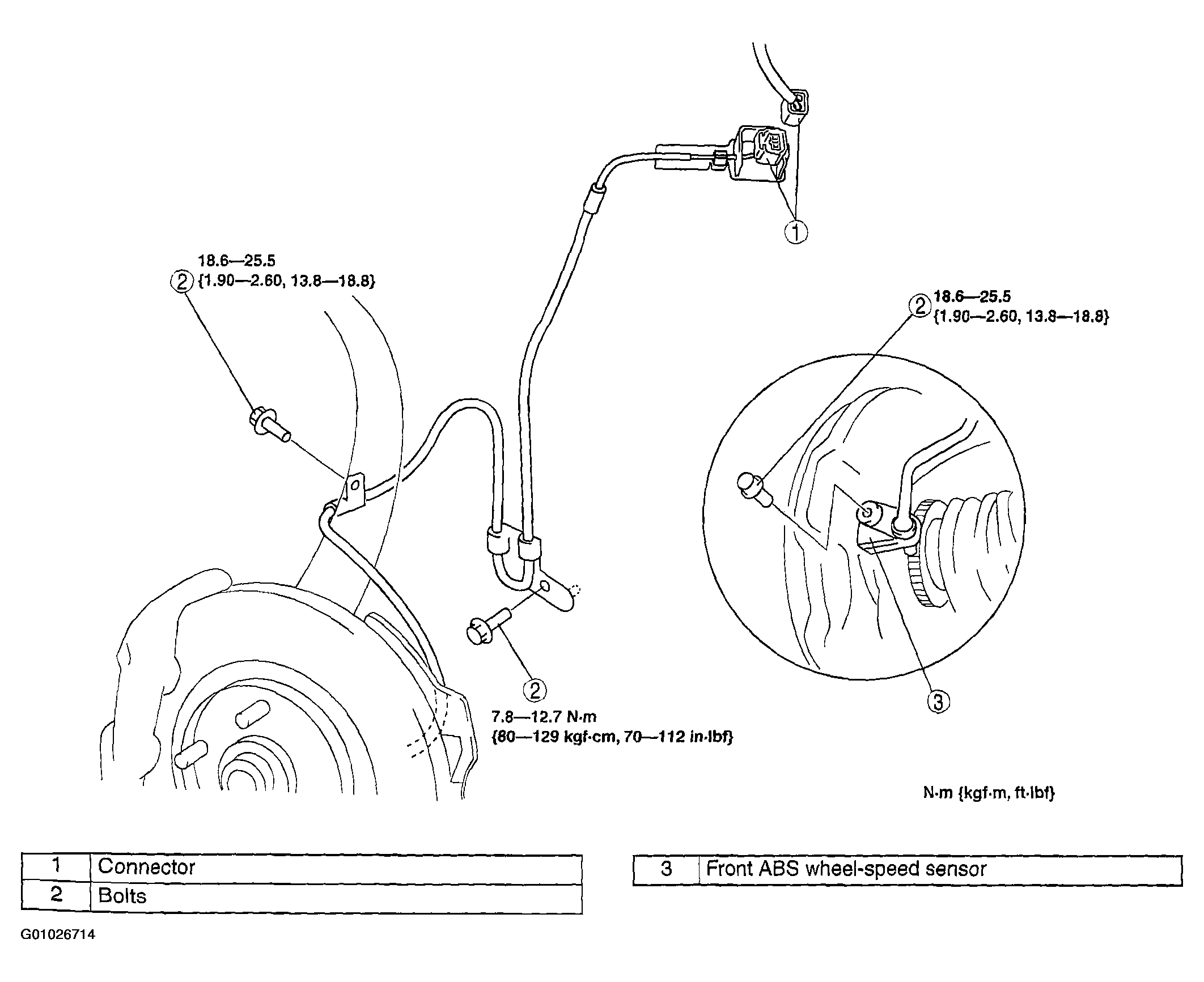

    Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor
    G01026714Courtesy of MAZDA MOTORS CORP.
