Abs/TCS HU/Cm Configuration

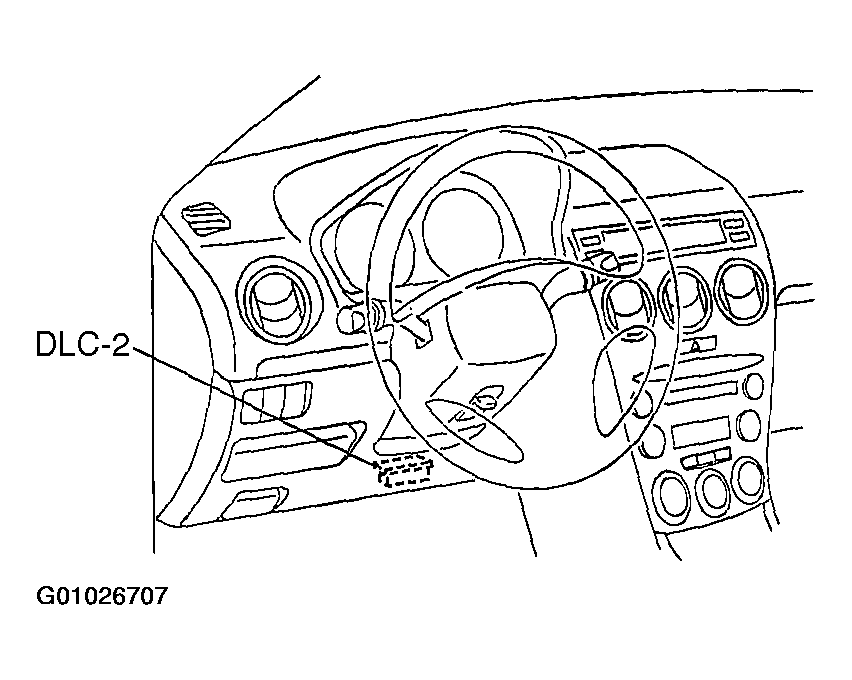

- Connect the WDS or equivalent to the DLC-2.
- Input vehicle information following the directions on the WDS or equivalent screen.
- Select "MODULE PROGRAMMING".
- Select "PROGRAMMABLE MODULE INSTALLATION".
- Select "ABS/TCS".
- Retrieve DTCs using the WDS or equivalent, then verify that there is no DTC present.
- If any DTC is present, perform applicable DTC inspection.
