Ignition Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Disconnect the ignition switch connectors.
  4. Inspect for continuity between the ignition switch terminals using an ohmmeter.

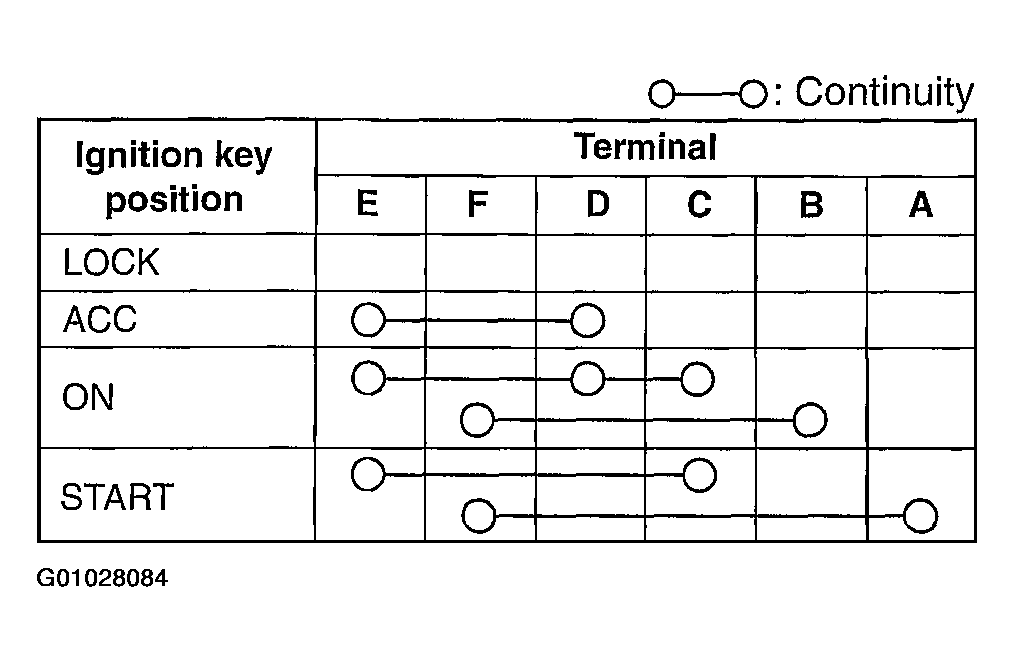

Fig 1: Checking Ignition Switch Continuity
G01028084Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Ignition Switch Terminals Connection
G01028085Courtesy of MAZDA MOTORS CORP.
