Mazda
>>
2004
>>
6 i, 4D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine Control System (L3)
>>
No.17 Cooling System Concerns-Overheating
>>
Diagnostic procedure
Diagnostic procedure

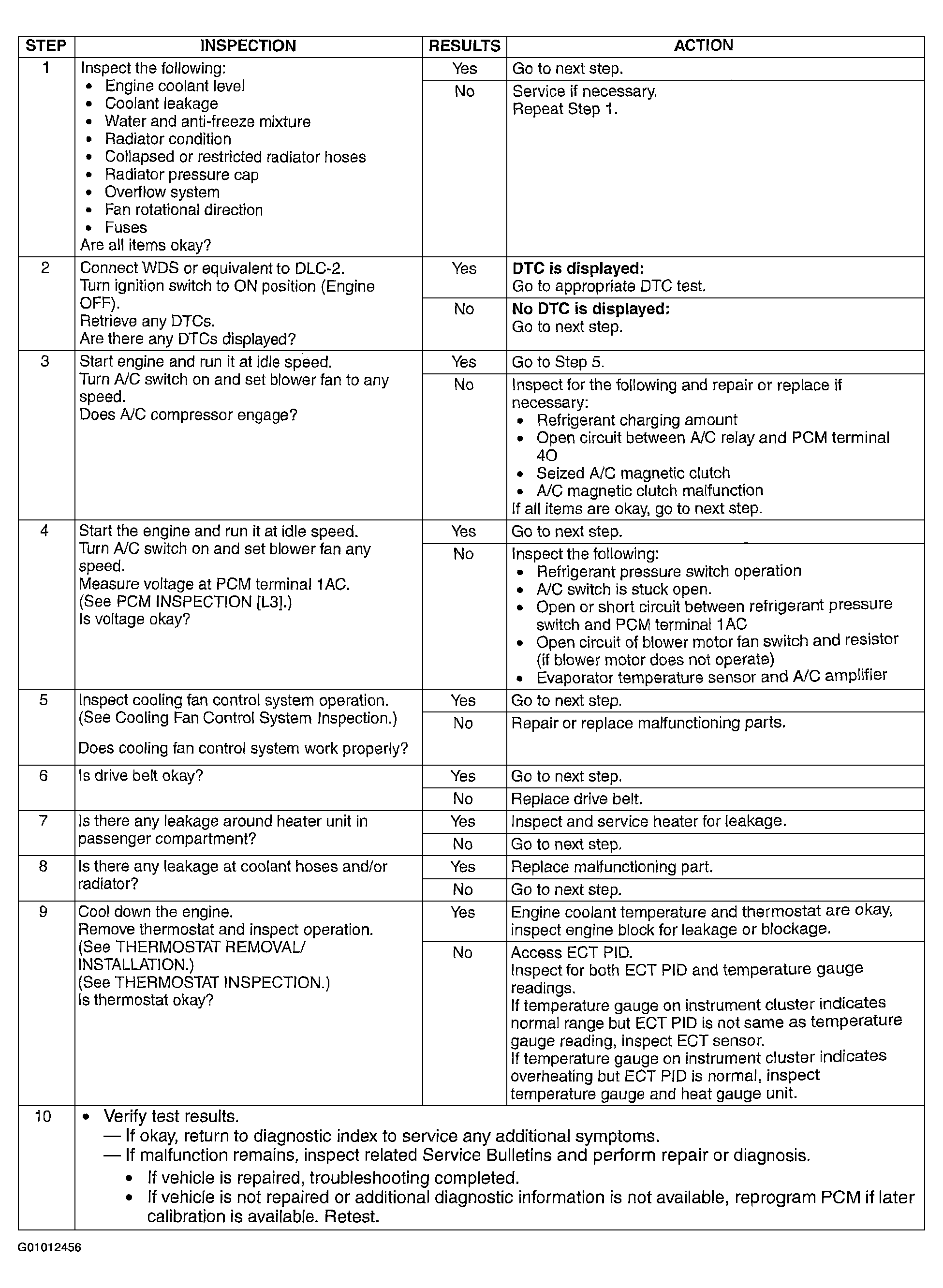

Fig 1: Symptom No.17 Cooling System Concerns-Overheating - Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
