DTC P2177: Fuel System Too Lean At Off Idle: Notes

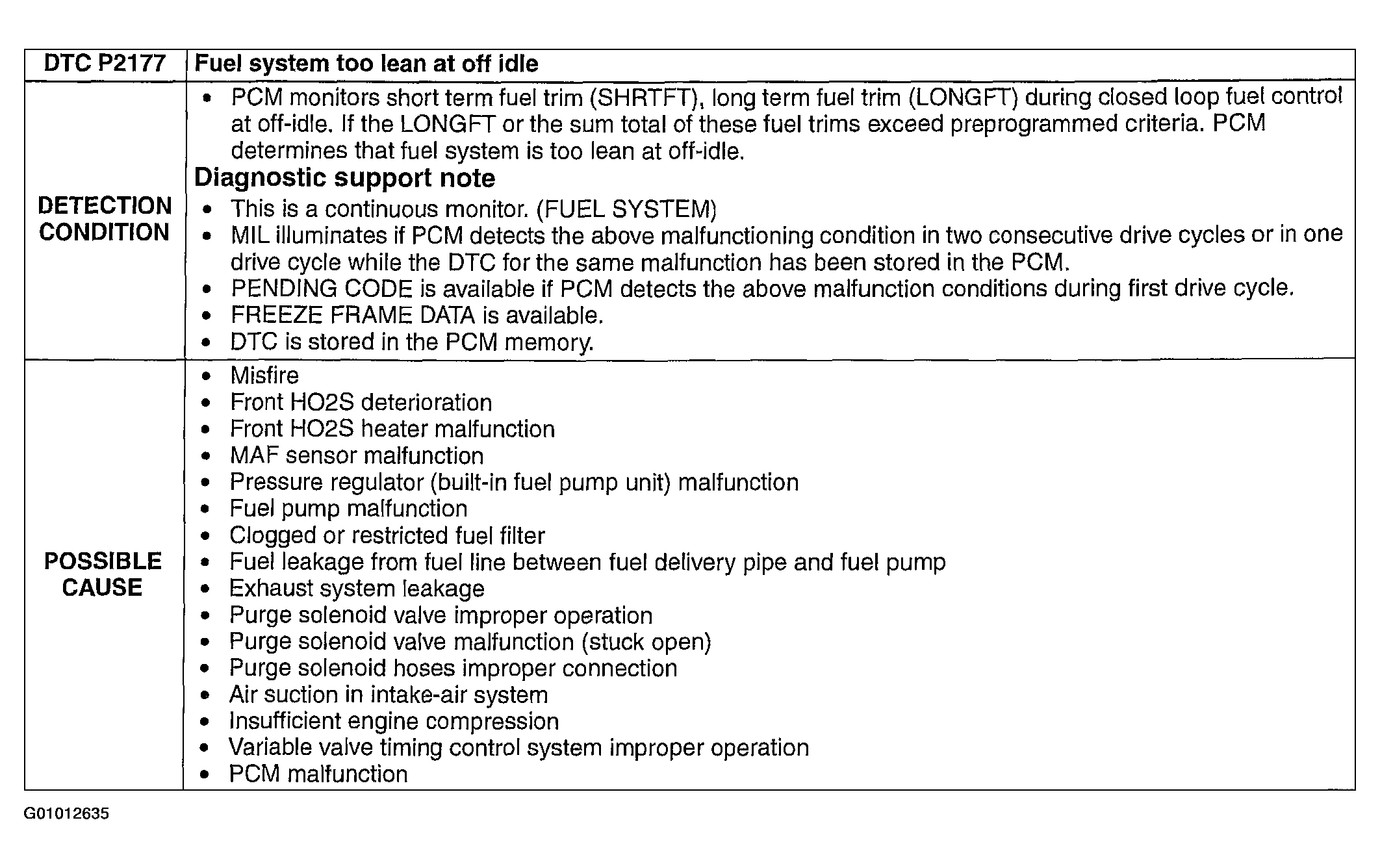

Fig 1: DTC P2177 - Detection Conditions & Possible Causes

G01012635

Courtesy of MAZDA MOTORS CORP.
