DTC P2102: Throttle Actuator Circuit Low Input: Notes

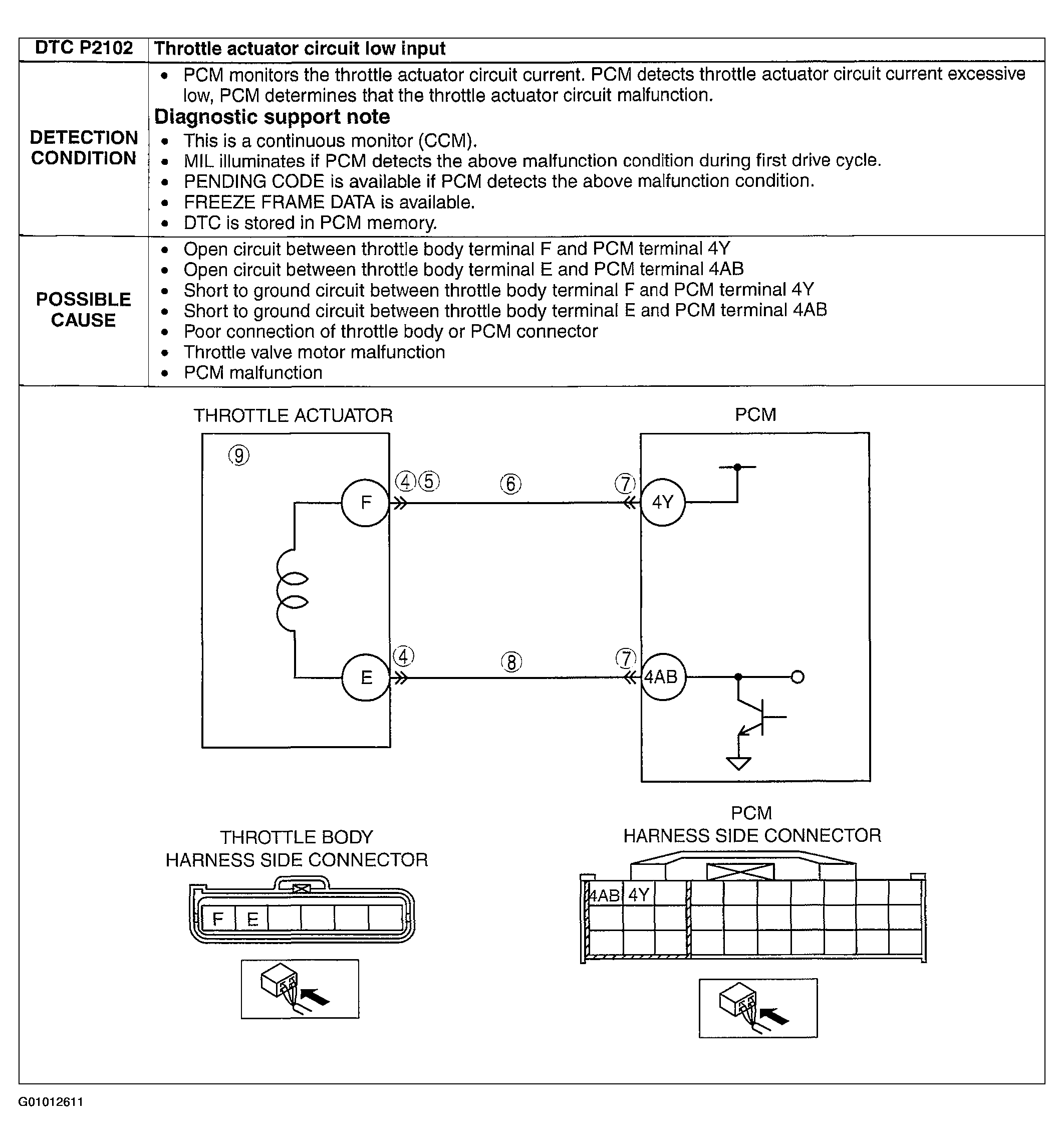

Fig 1: DTC P2102 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

G01012611

Courtesy of MAZDA MOTORS CORP.
