Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P2100: Throttle Actuator Circuit Open >> Notes

DTC P2100: Throttle Actuator Circuit Open: Notes

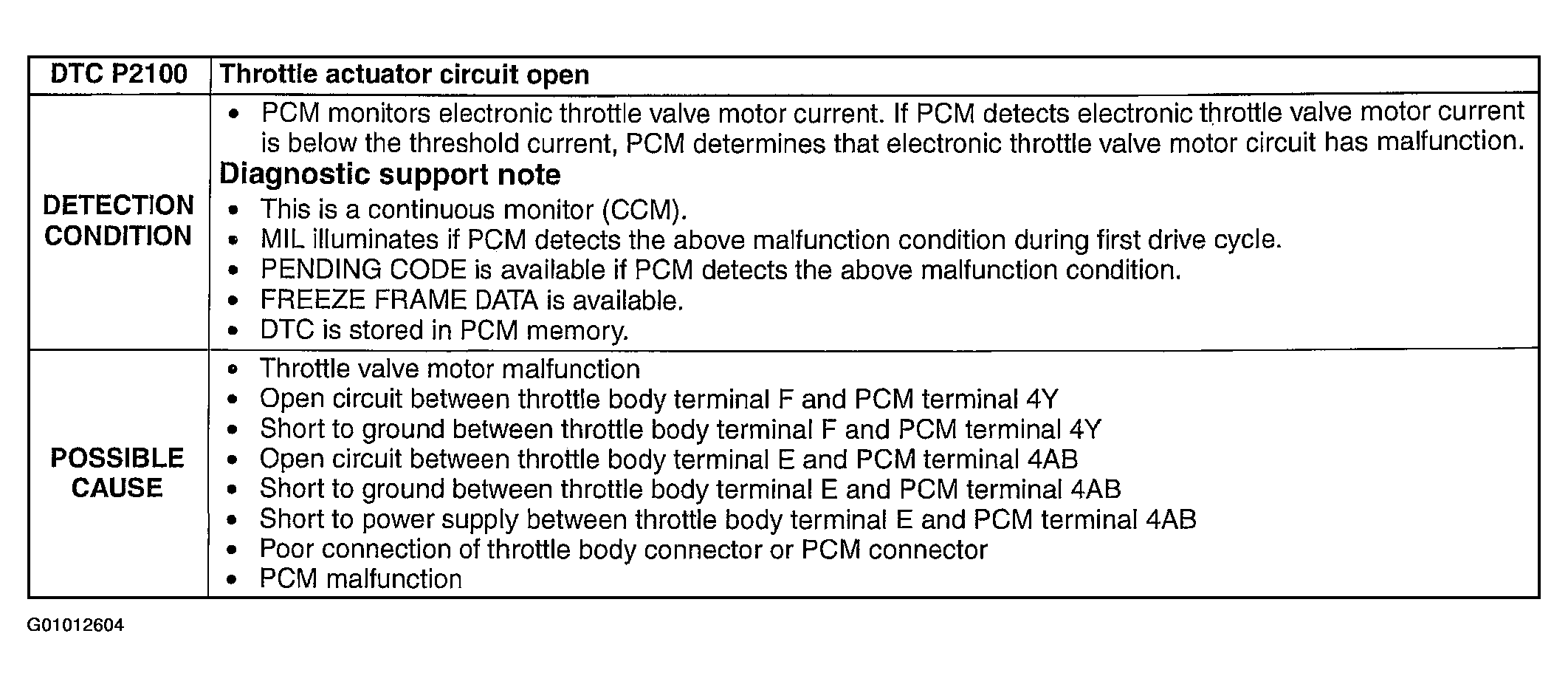

Fig 1: DTC P2100 - Detection Conditions & Possible Causes

G01012604

Courtesy of MAZDA MOTORS CORP.
