DTC P2097: Target A/F Feedback System Too Rich: Notes

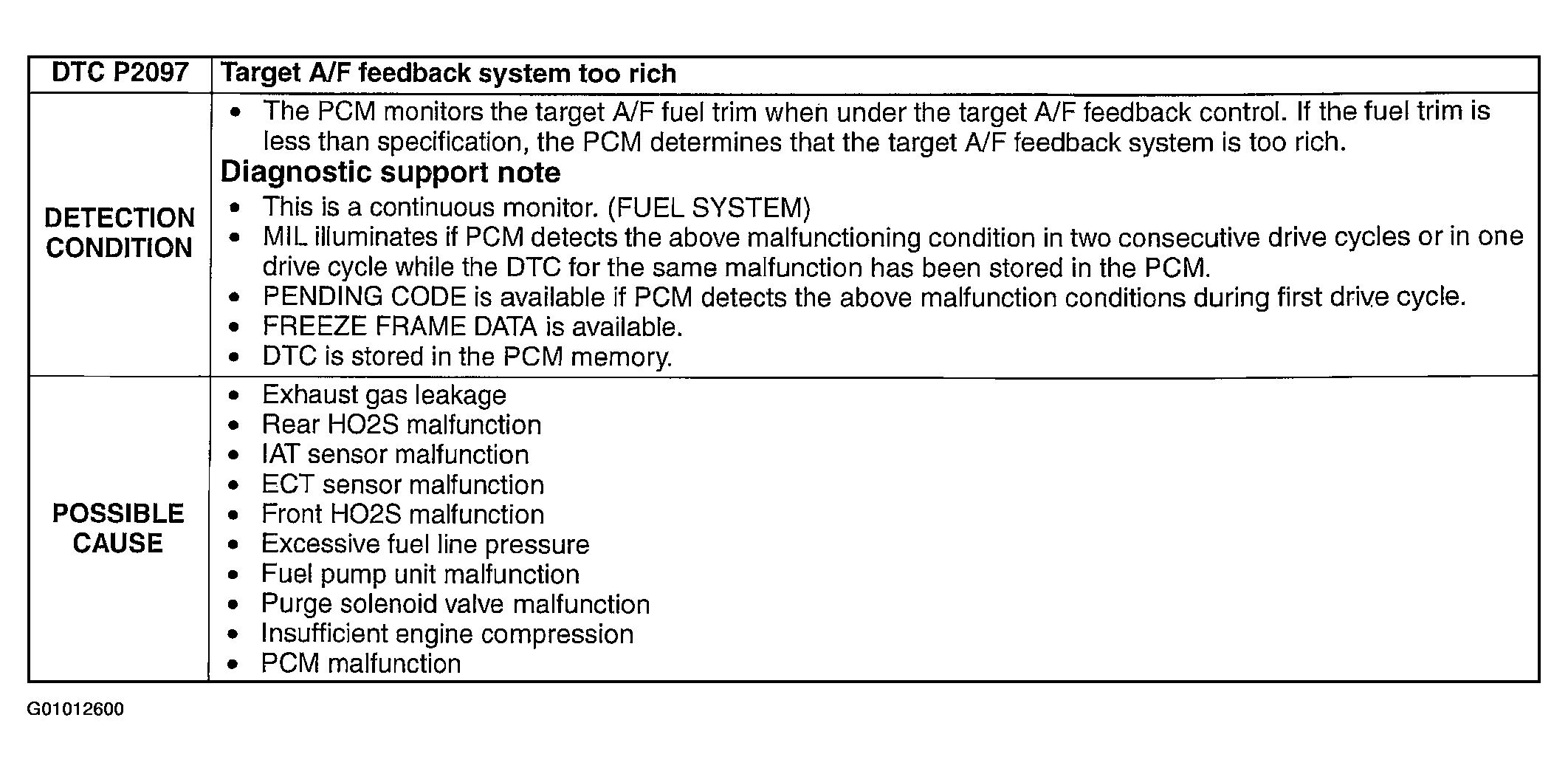

Fig 1: DTC P2097 - Detection Conditions & Possible Causes

G01012600

Courtesy of MAZDA MOTORS CORP.
