Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P2096: Target A/F Feedback System Too Lean >> Notes

DTC P2096: Target A/F Feedback System Too Lean: Notes

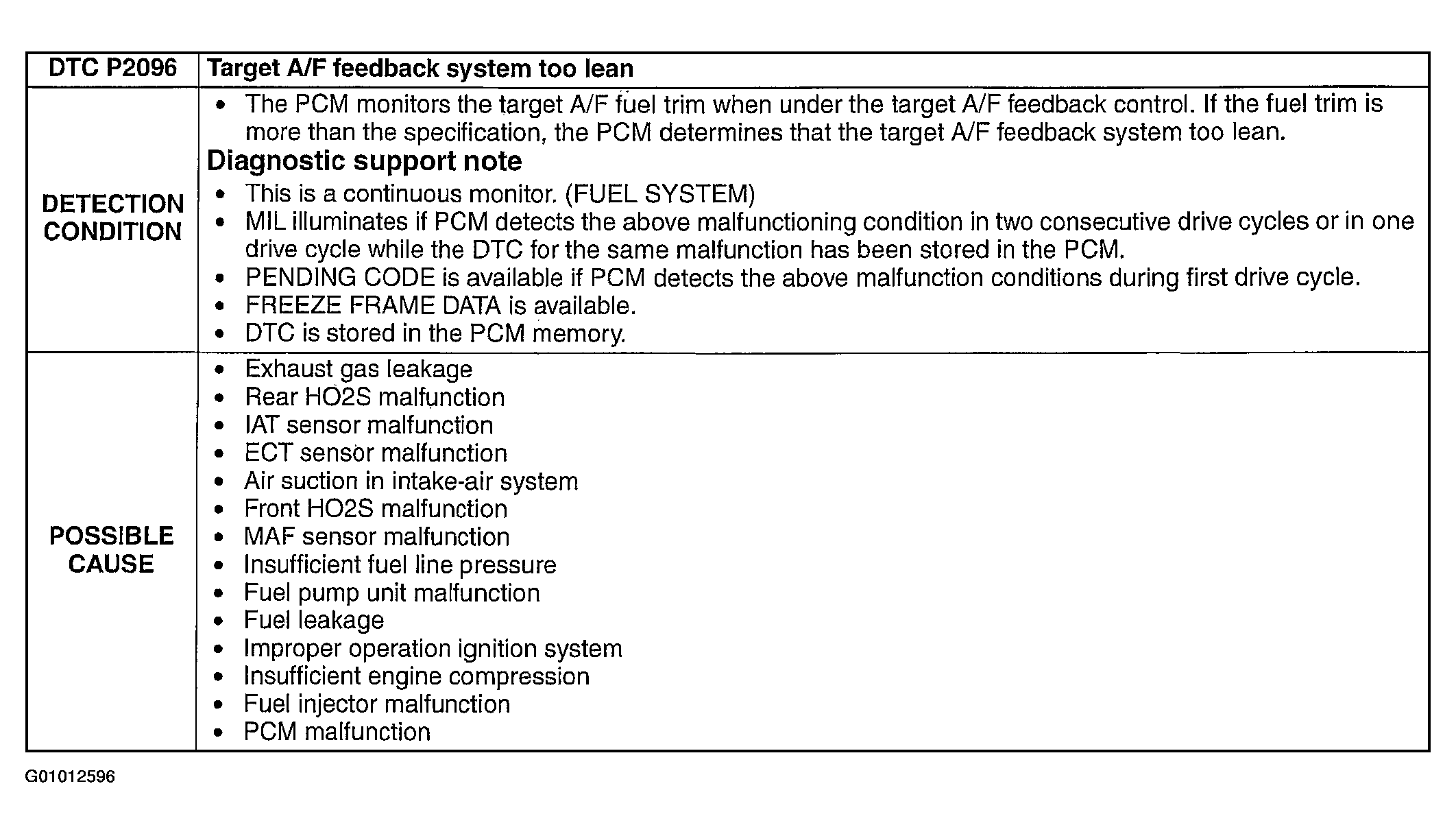

Fig 1: DTC P2096 - Detection Conditions & Possible Causes

G01012596

Courtesy of MAZDA MOTORS CORP.
