Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P0480: Fan Relay No. 1 Control Circuit Malfunction >> Notes

DTC P0480: Fan Relay No. 1 Control Circuit Malfunction: Notes

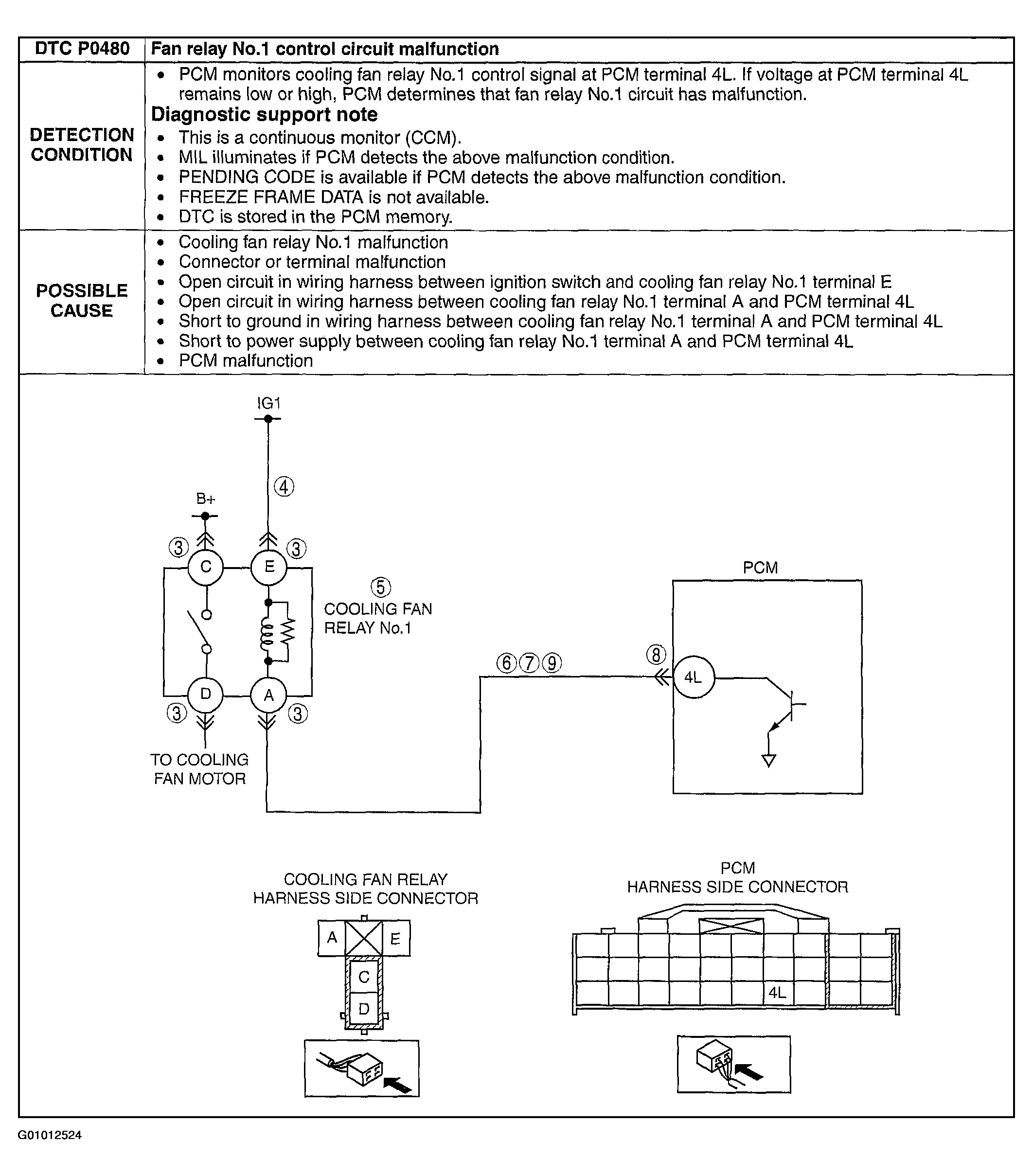

Fig 1: DTC P0480 - Detection Conditions, Possible Causes, Circuit Identification & Connector Views

G01012524

Courtesy of MAZDA MOTORS CORP.
