Home >> Mazda >> 2004 >> 6 i, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System L3) >> DTC P0140: Rear Ho2S Circuit No Activity Detected >> Notes

DTC P0140: Rear Ho2S Circuit No Activity Detected: Notes

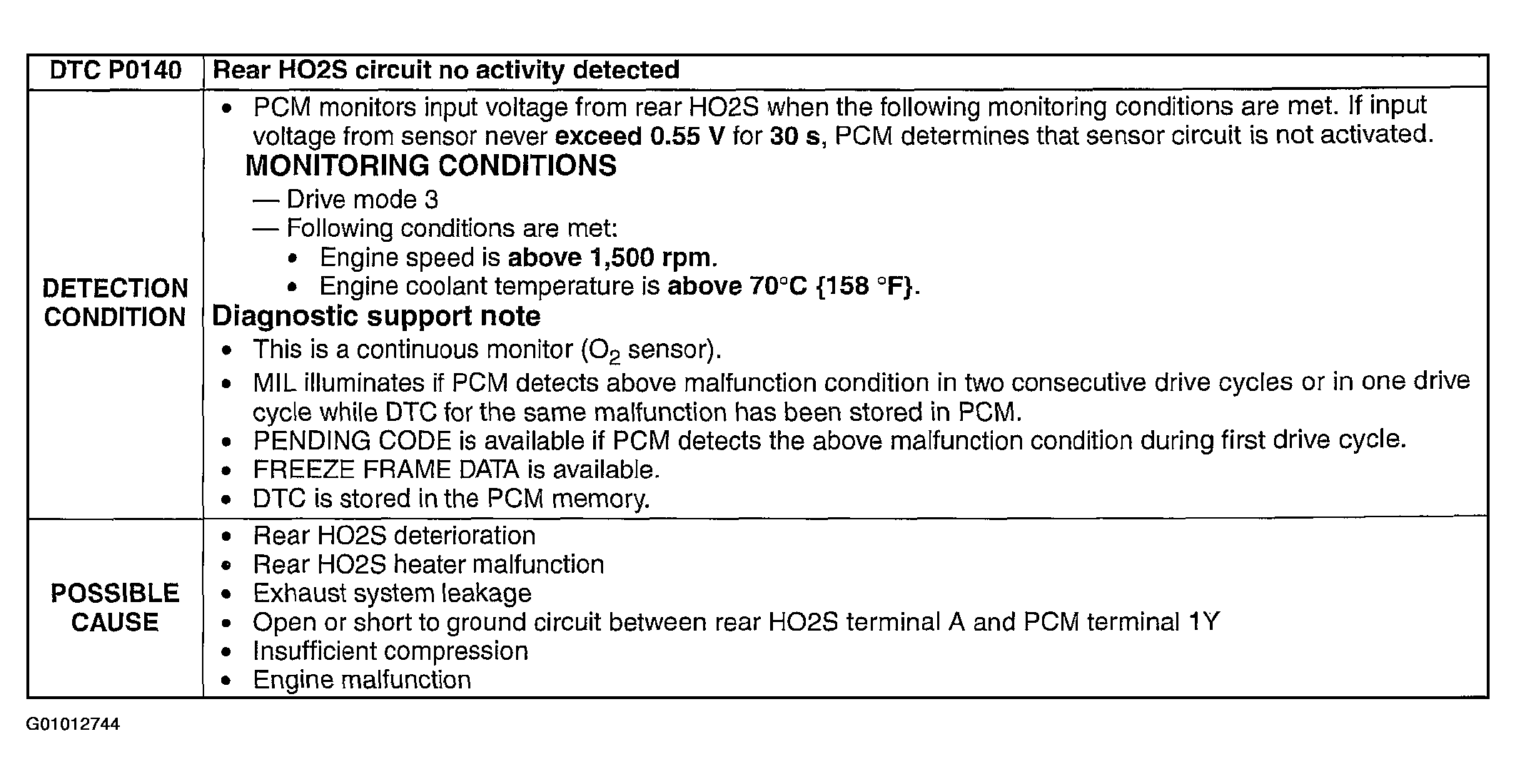

Fig 1: DTC P0140 - Detection Conditions & Possible Causes
G01012744Courtesy of MAZDA MOTORS CORP.

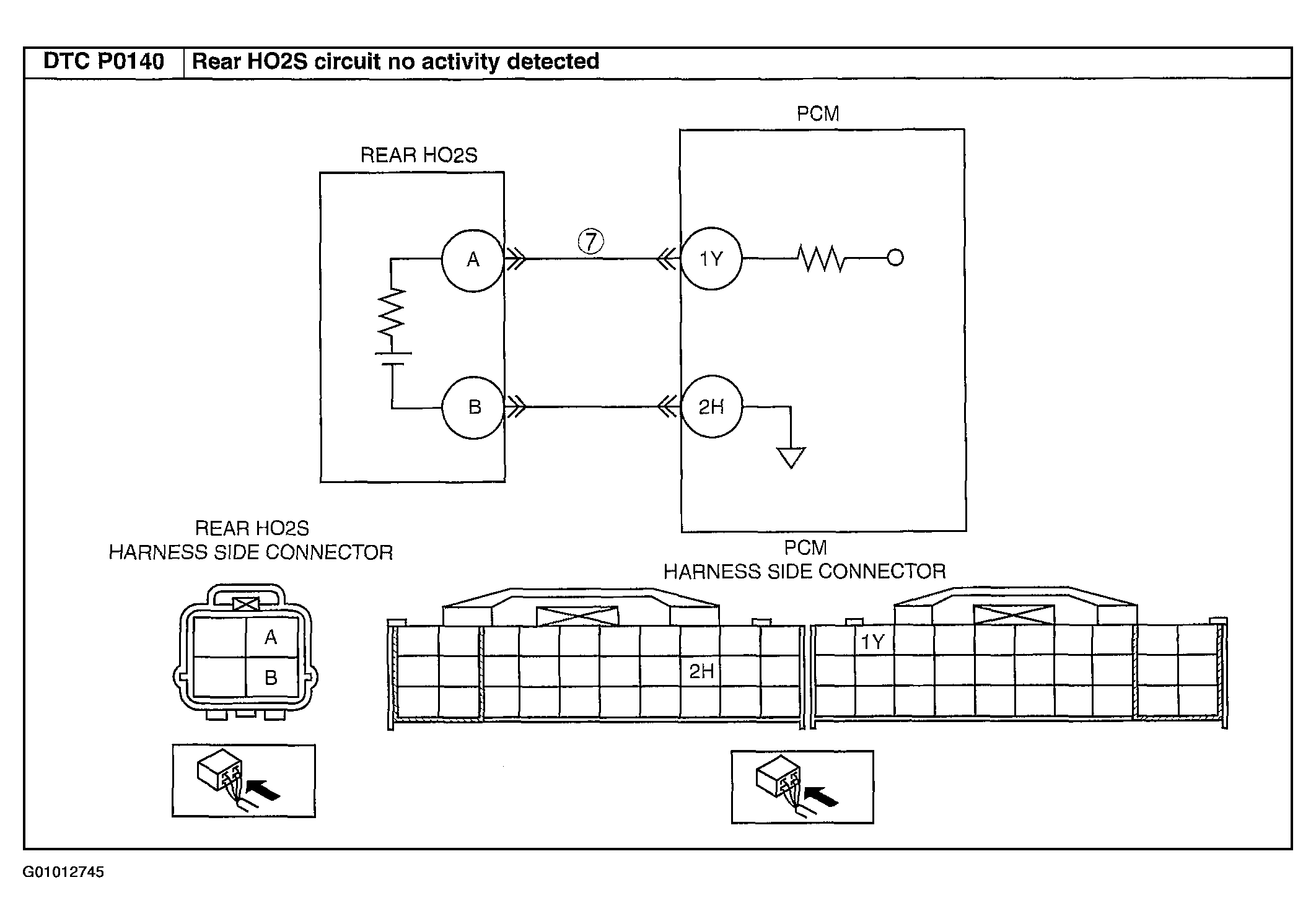

Fig 2: DTC P0140 - Circuit Identification & Connector Views
G01012745Courtesy of MAZDA MOTORS CORP.
