Power Outside Mirror Switch Inspection

  1. Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
    • If not as specified, replace the power outside mirror switch.

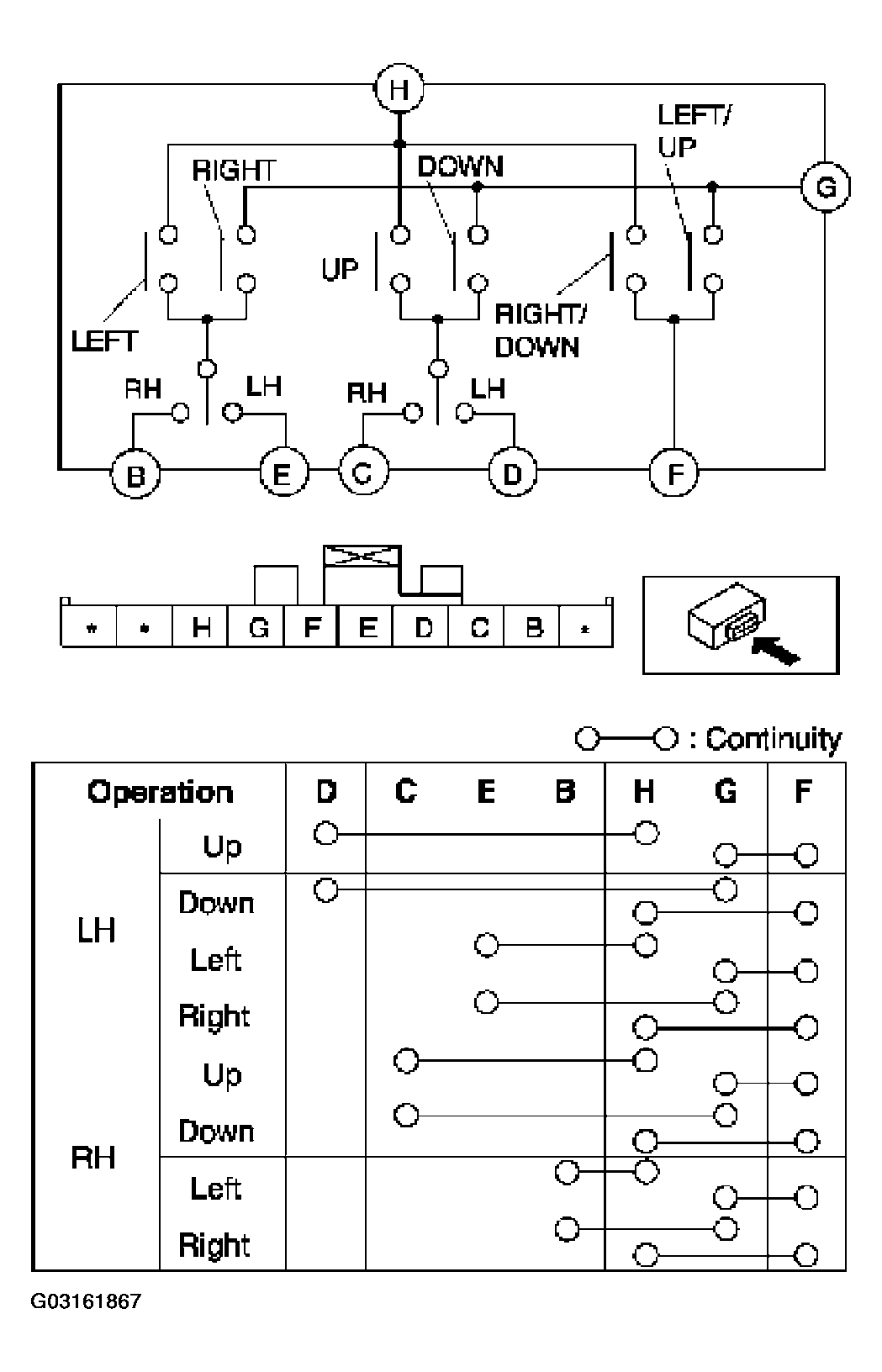

Fig 1: Inspecting Continuity Between Power Outside Mirror Switch Terminals
G03161867Courtesy of MAZDA MOTORS CORP.
