Electric Power Steering Oil Pump Removal/Installation

  1. Remove the under cover, splash shield and mudguard.
  2. Remove the washer tank. See WASHER TANK REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

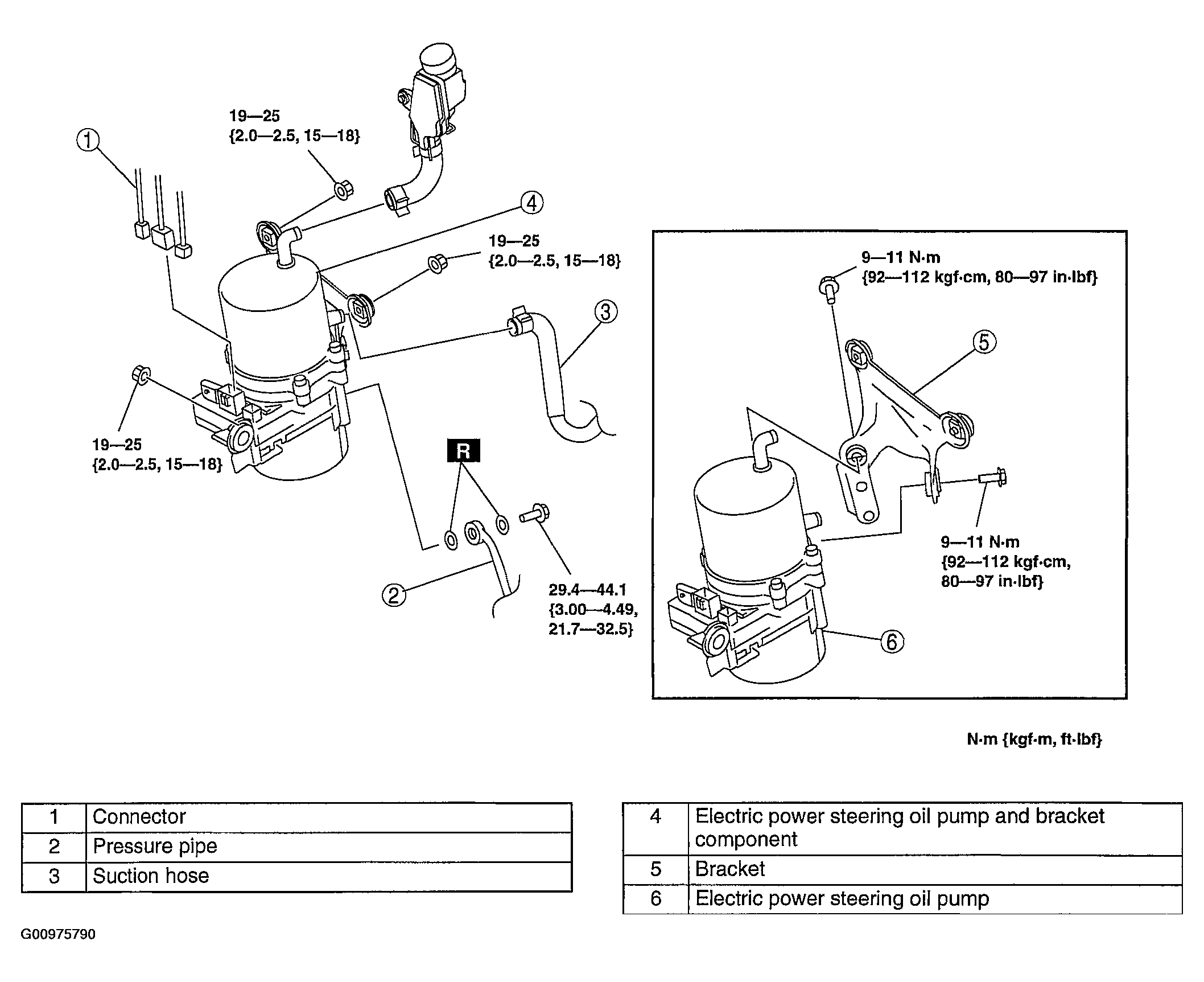

    Fig 1: Electric Power Steering Oil Pump With Torque Specifications
    G00975790Courtesy of MAZDA MOTORS CORP.
