Mazda
>>
2004
>>
3 s, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
On-Board Diagnostic [Abs)
>>
Abs On-Board Diagnosis
>>
PID/DATA Monitor Table
PID/DATA Monitor Table

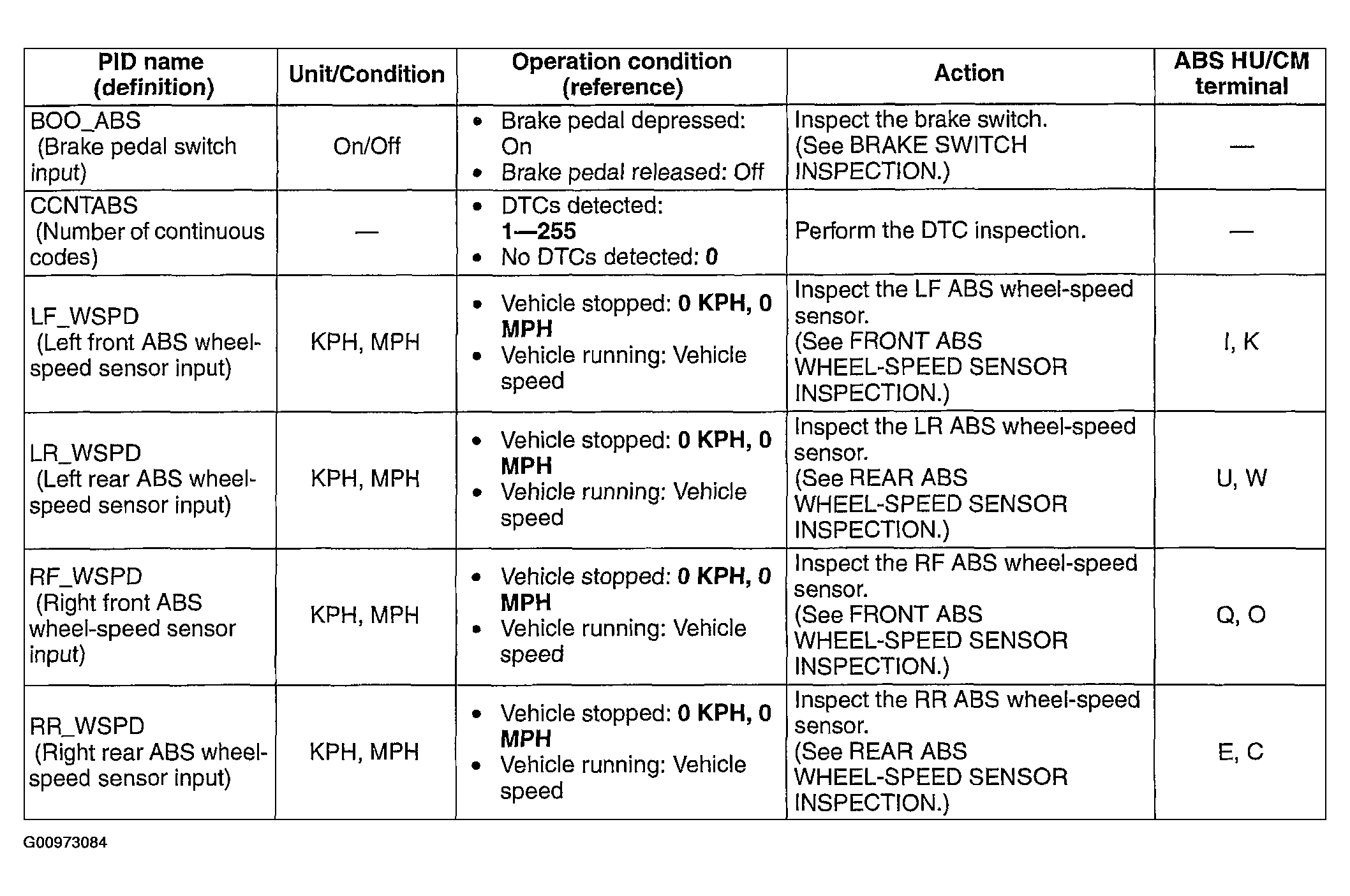

Fig 1: PID/DATA Monitor Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
