Symptom Troubleshooting [Automatic Transaxle]
>>
Basic Inspection
Basic Inspection

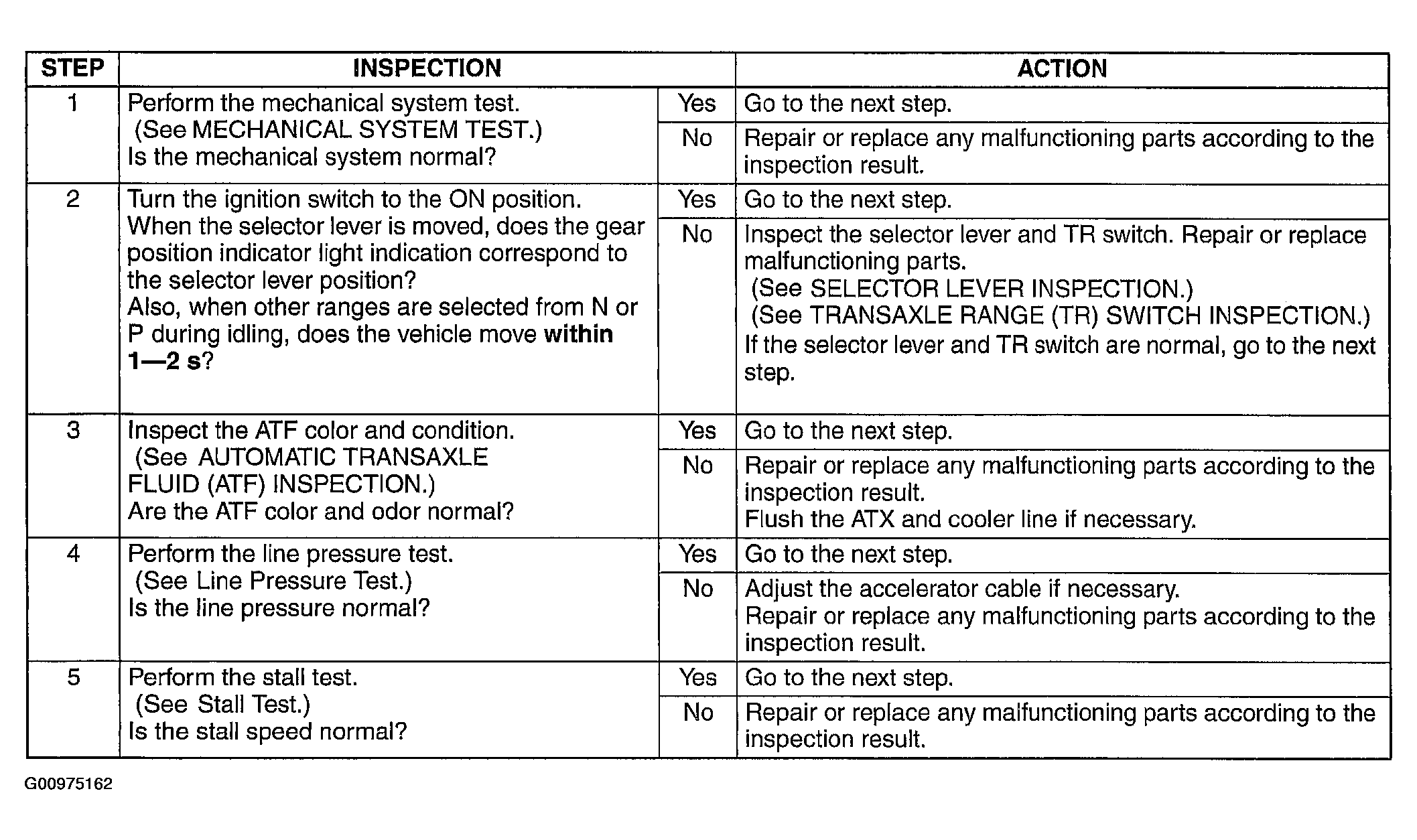

Fig 1: Basic Inspection (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

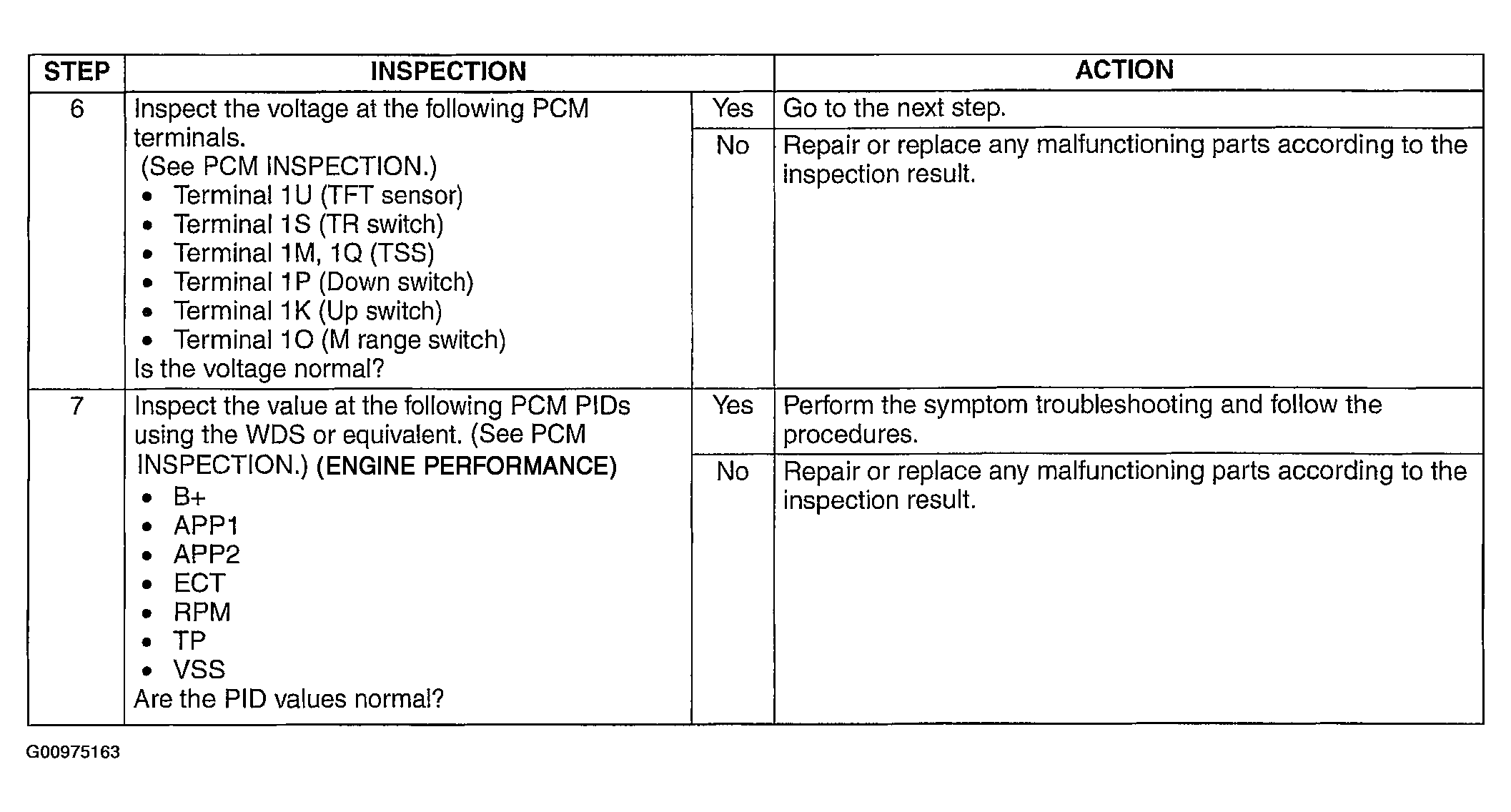

Fig 2: Basic Inspection (Steps 6-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
