Selector Lever Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

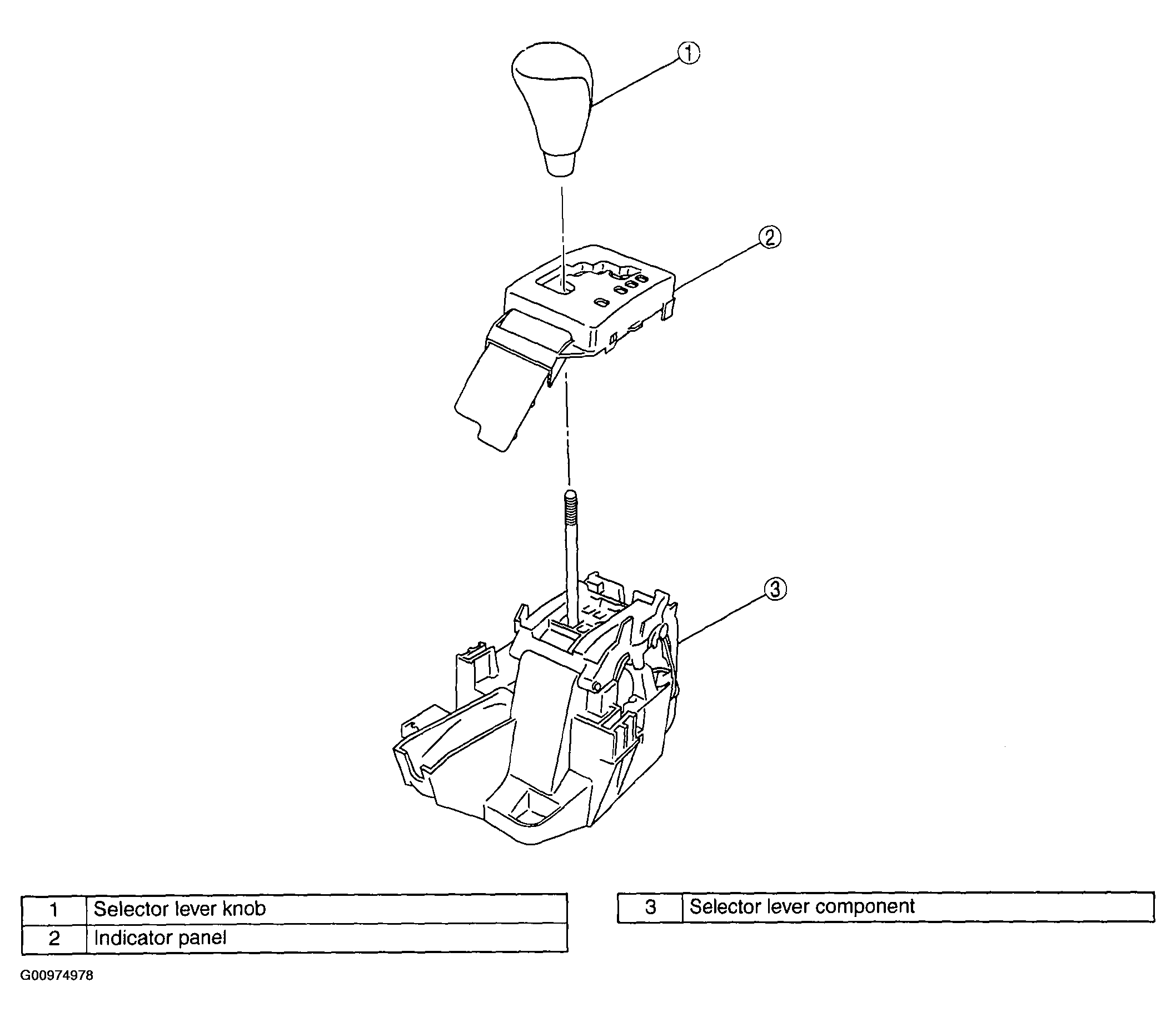

    Fig 1: Disassembly/Assembly Of Selector Lever
    G00974978Courtesy of MAZDA MOTORS CORP.
