Selector Lever Component Inspection

  1. Remove the battery cover.
  2. Disconnect the negative battery cable.
  3. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  4. Disconnect the selector lever component connector.
    Fig 1: Identifying Selector Lever Component Connector Terminals
    G00974966Courtesy of MAZDA MOTORS CORP.
  5. Verify that the continuity is as indicated in the table.

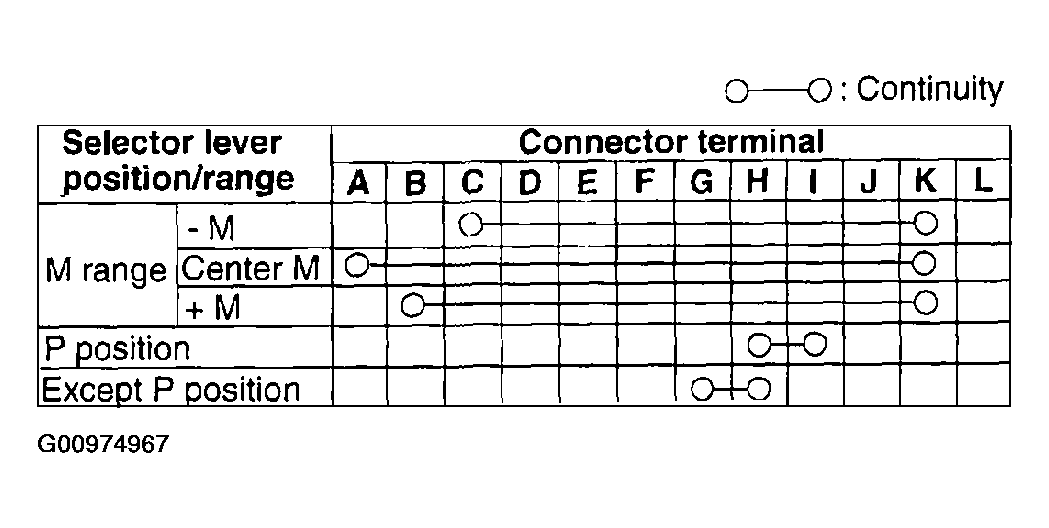

    Fig 2: Selector Lever Component Continuity Table
    G00974967Courtesy of MAZDA MOTORS CORP.
