P/S Angle Sensor Assembly Note

  1. Assemble the P/S angle sensor in the order shown in the figure.

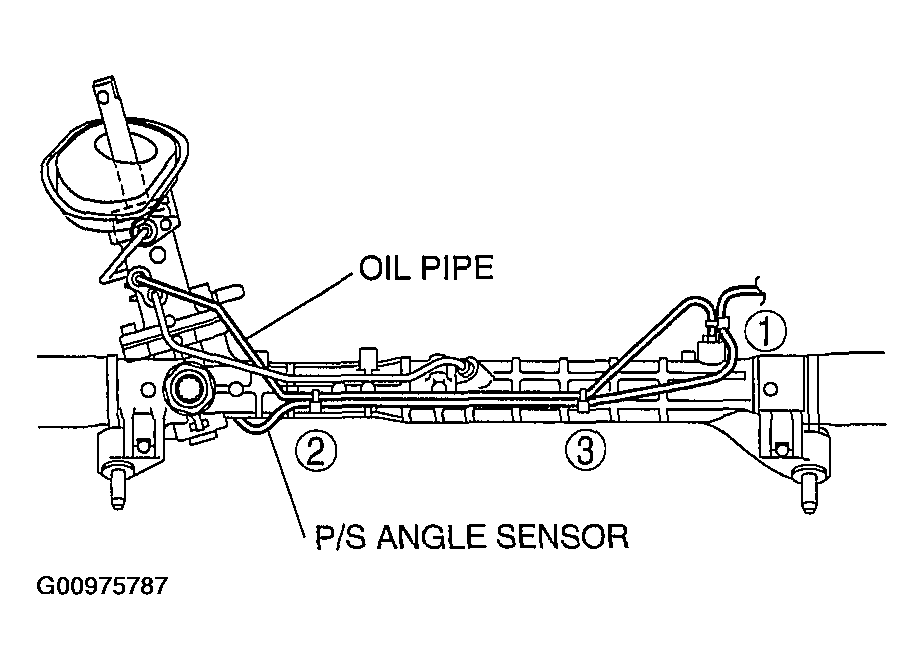

    Fig 1: P/S Angle Sensor Assembling Sequence
    G00975787Courtesy of MAZDA MOTORS CORP.
