Sunroof Motor Connector End View
Sunroof Motor Connector End View

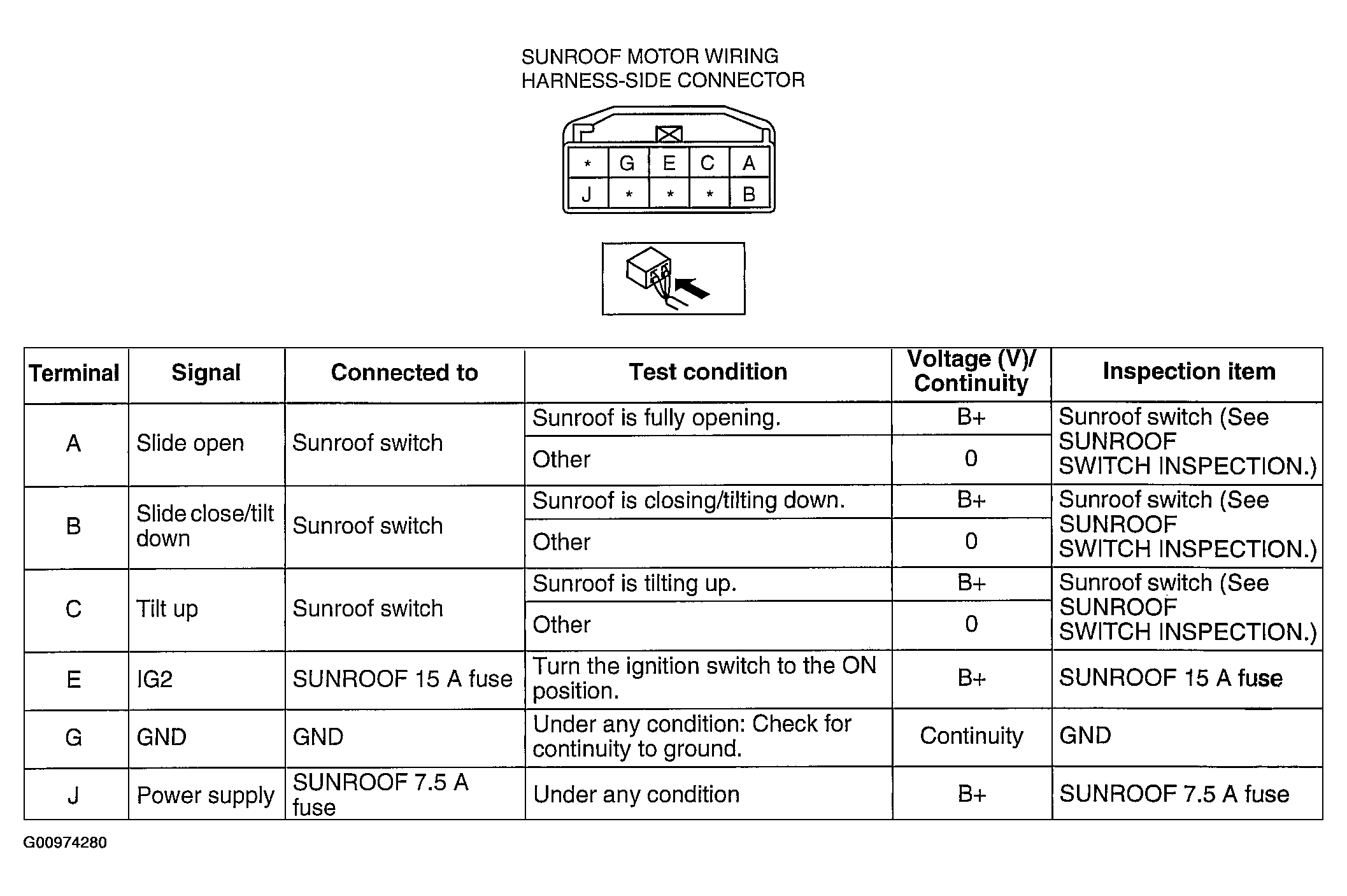

Fig 1: Sunroof Motor Connector End View
Courtesy of MAZDA MOTORS CORP.
Fig 1: Sunroof Motor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
