Vehicle speed signal (MTX)

PCM terminals

1J (+)-1N (-)

Oscilloscope setting

• 1 V/DIV (Y), 10 ms/DIV (X), DC range

Vehicle condition

• Vehicle speed is 10 km/h {6.2 mph}.

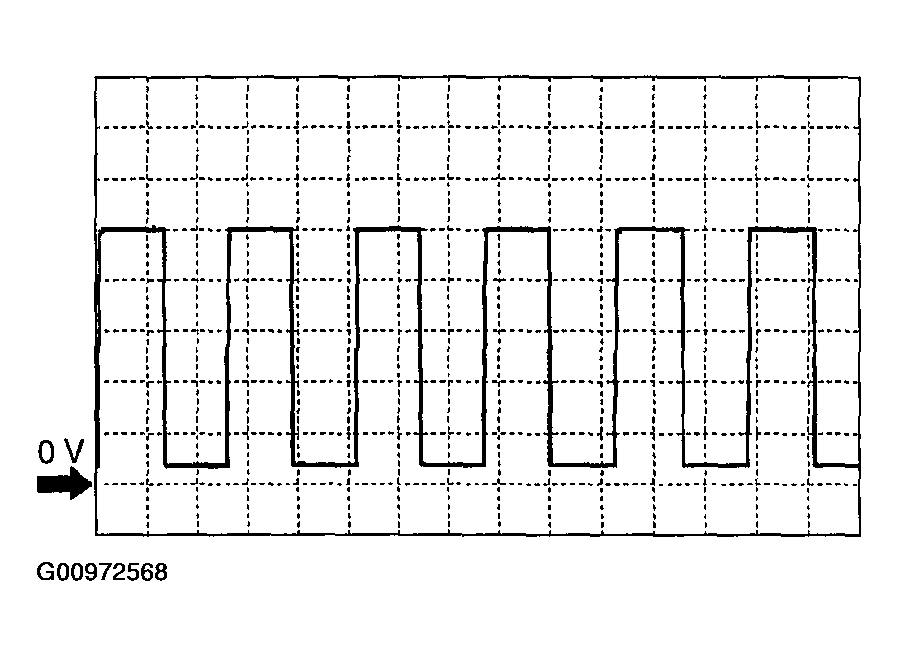

  Fig 1: Inspection Graph Of Vehicle Speed Signal (MTX) Using Oscilloscope

  Courtesy of MAZDA MOTORS CORP.
