Joint Hose Installation Note
Install the joint hose and clamp as shown in the figure.

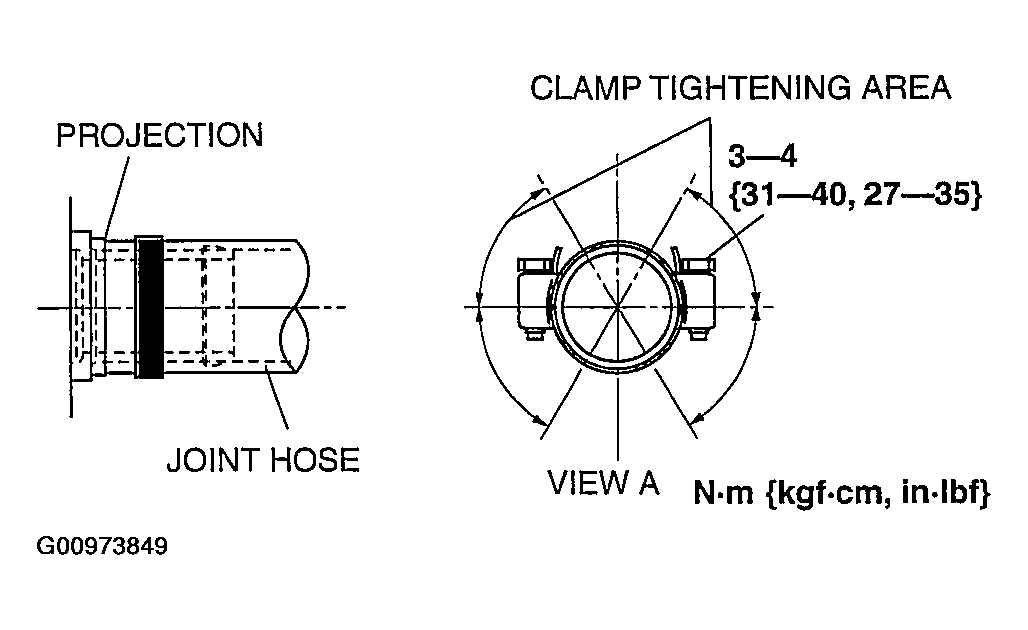

Fig 1: Installing Joint Hose And Clamp
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
