Check Code 22

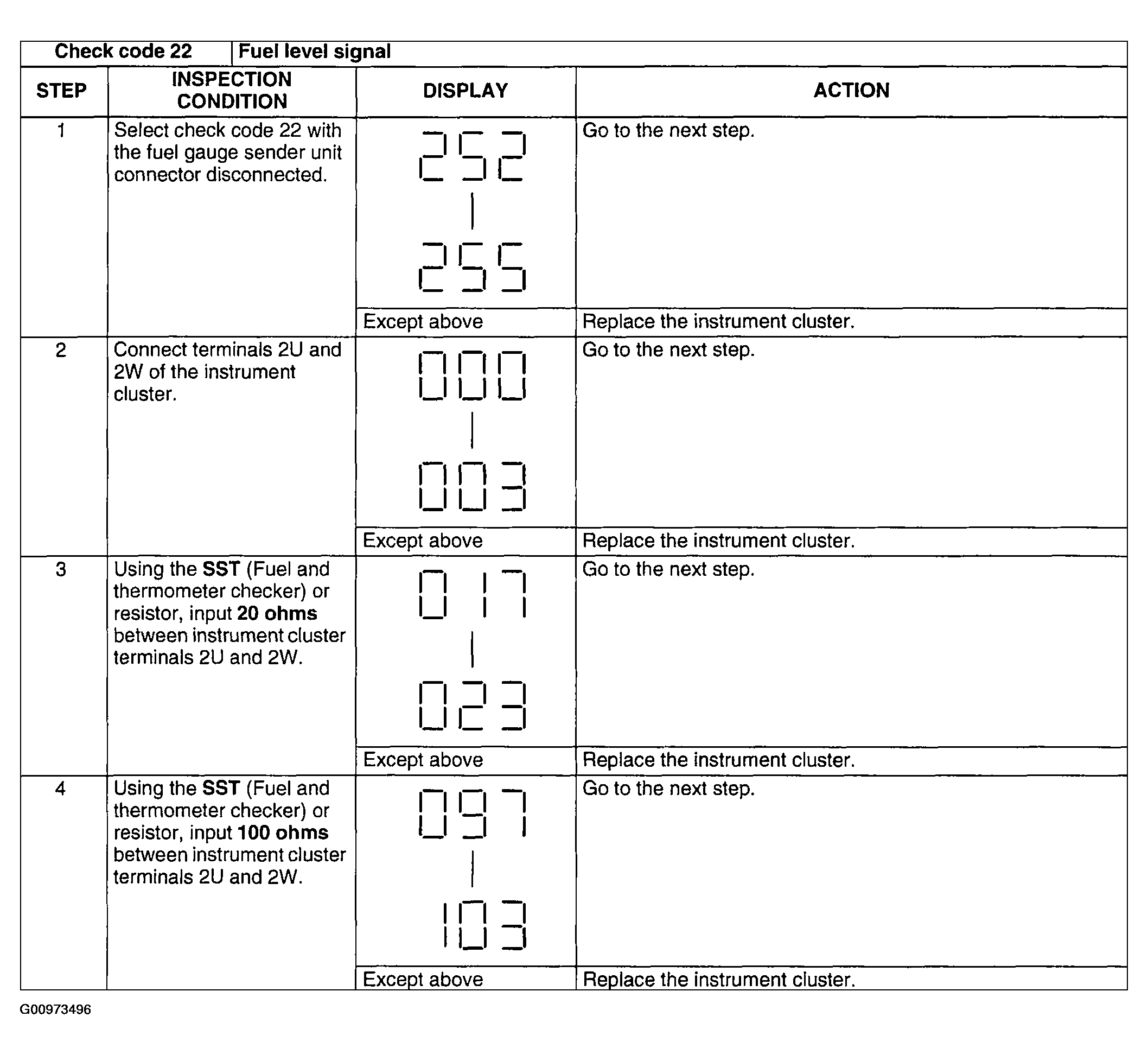

Fig 1: Code 22 - Check Code Inspection (1 Of 2)

G00973496

Courtesy of MAZDA MOTORS CORP.

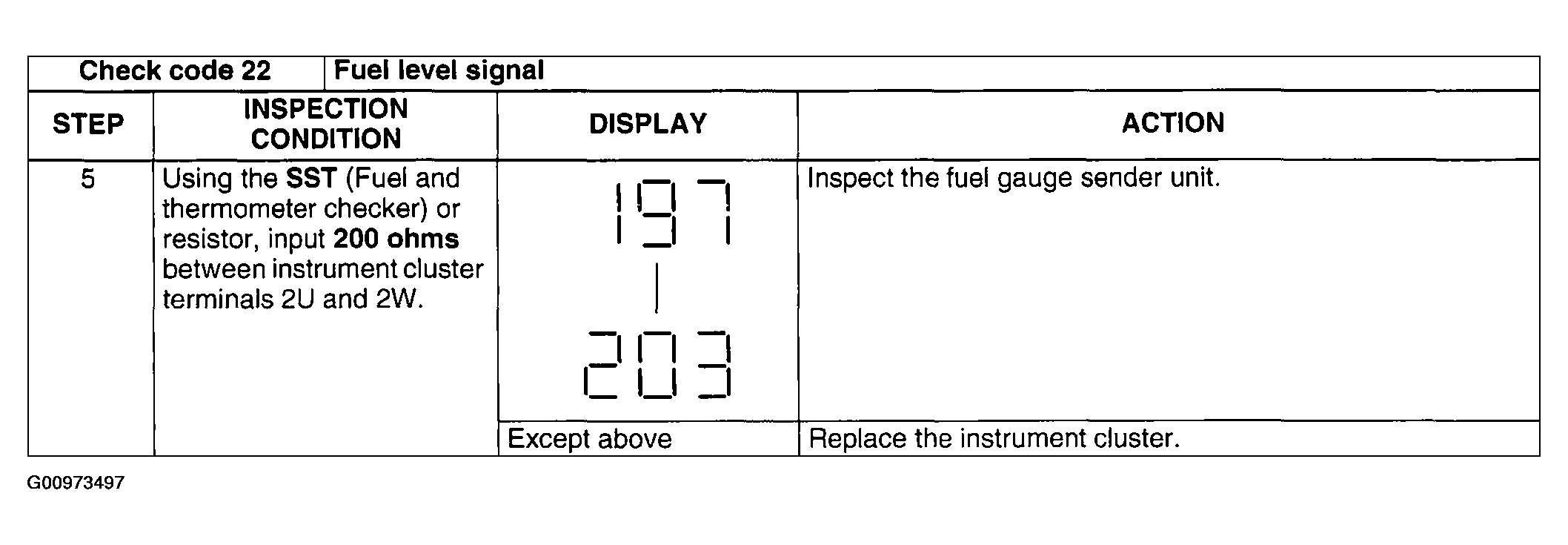

Fig 2: Code 22 - Check Code Inspection (2 Of 2)

G00973497

Courtesy of MAZDA MOTORS CORP.
